HealthView I Upgrade to HealthView II Overlay Panel for ATD-57

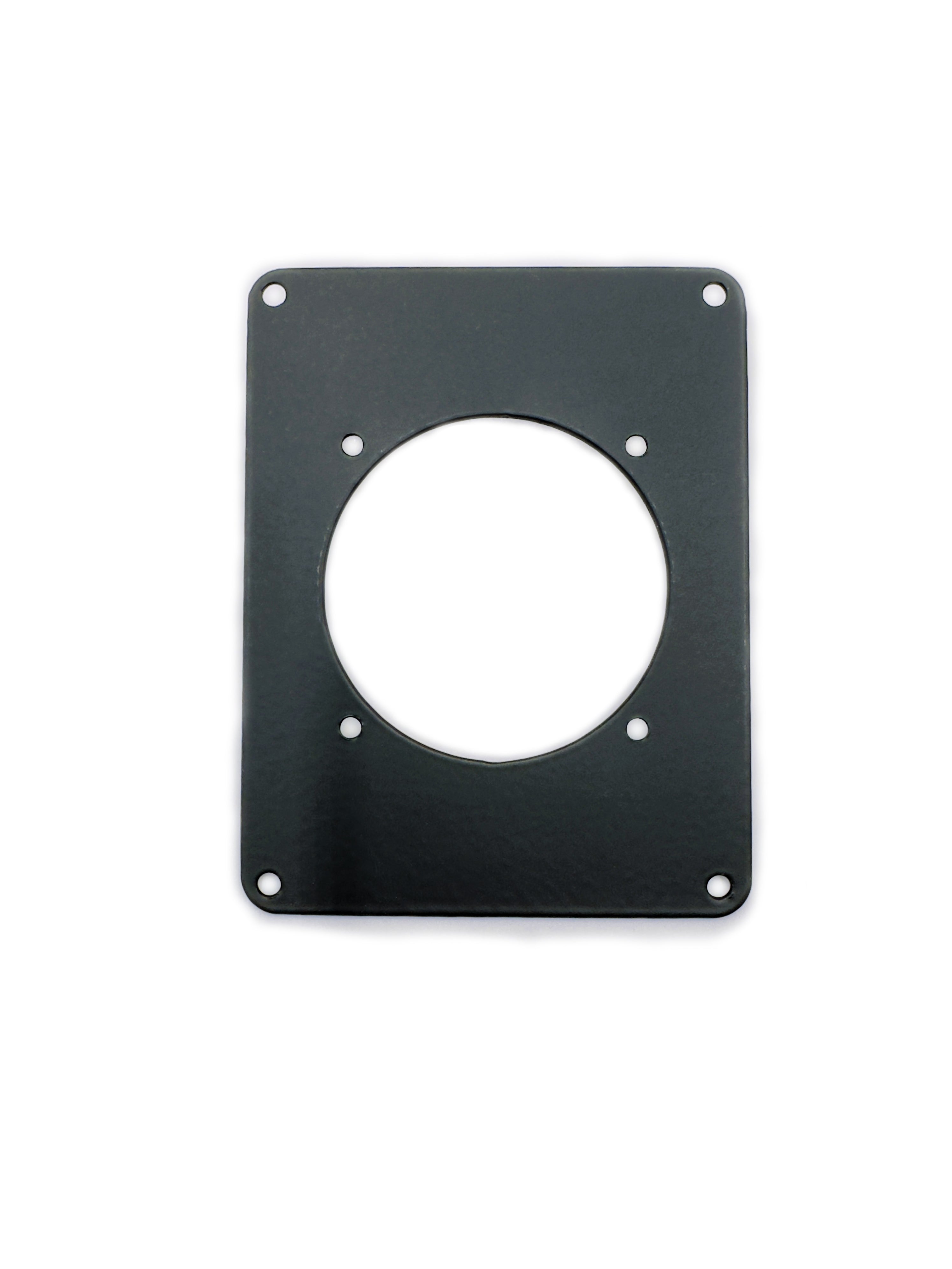

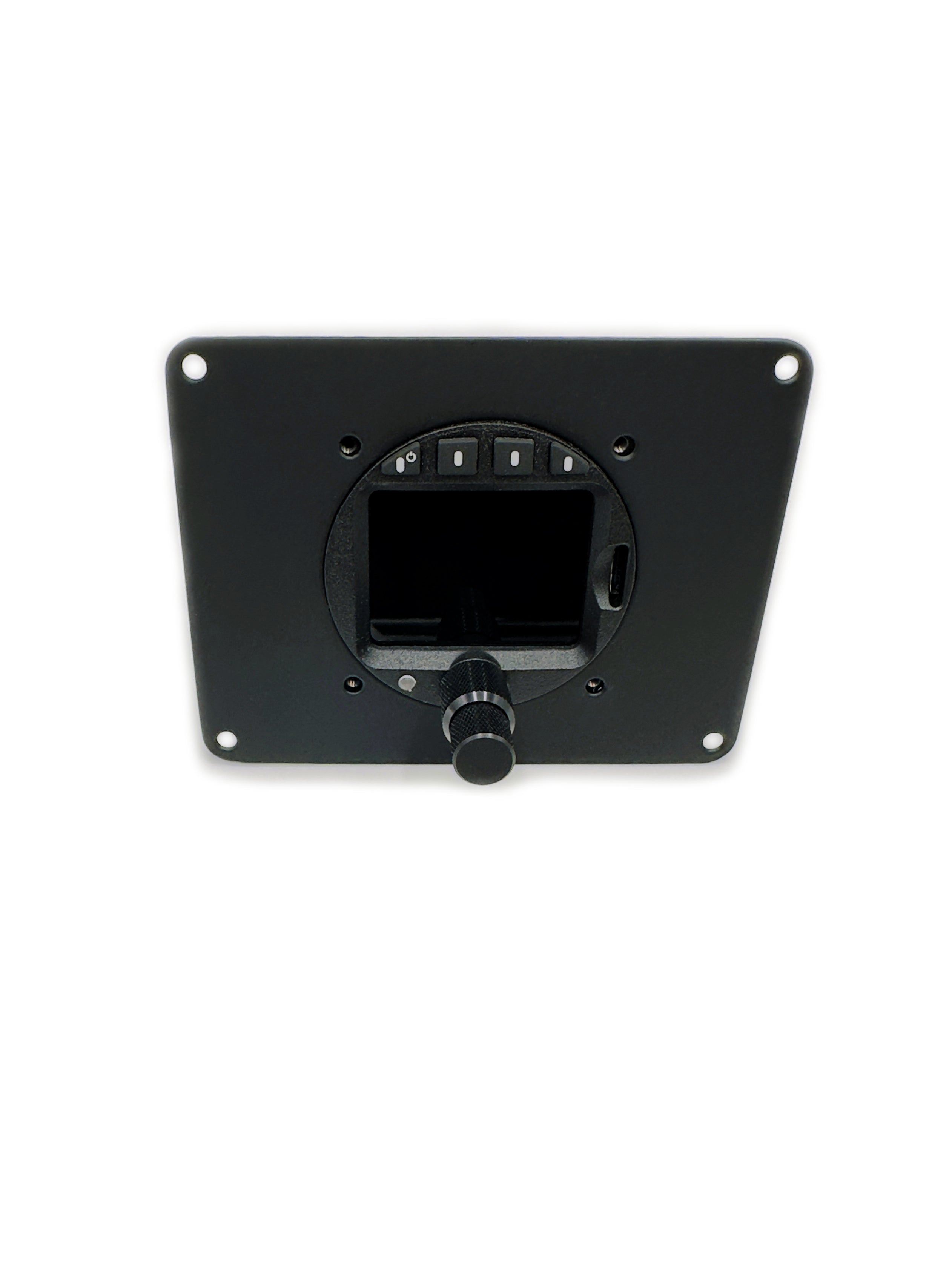

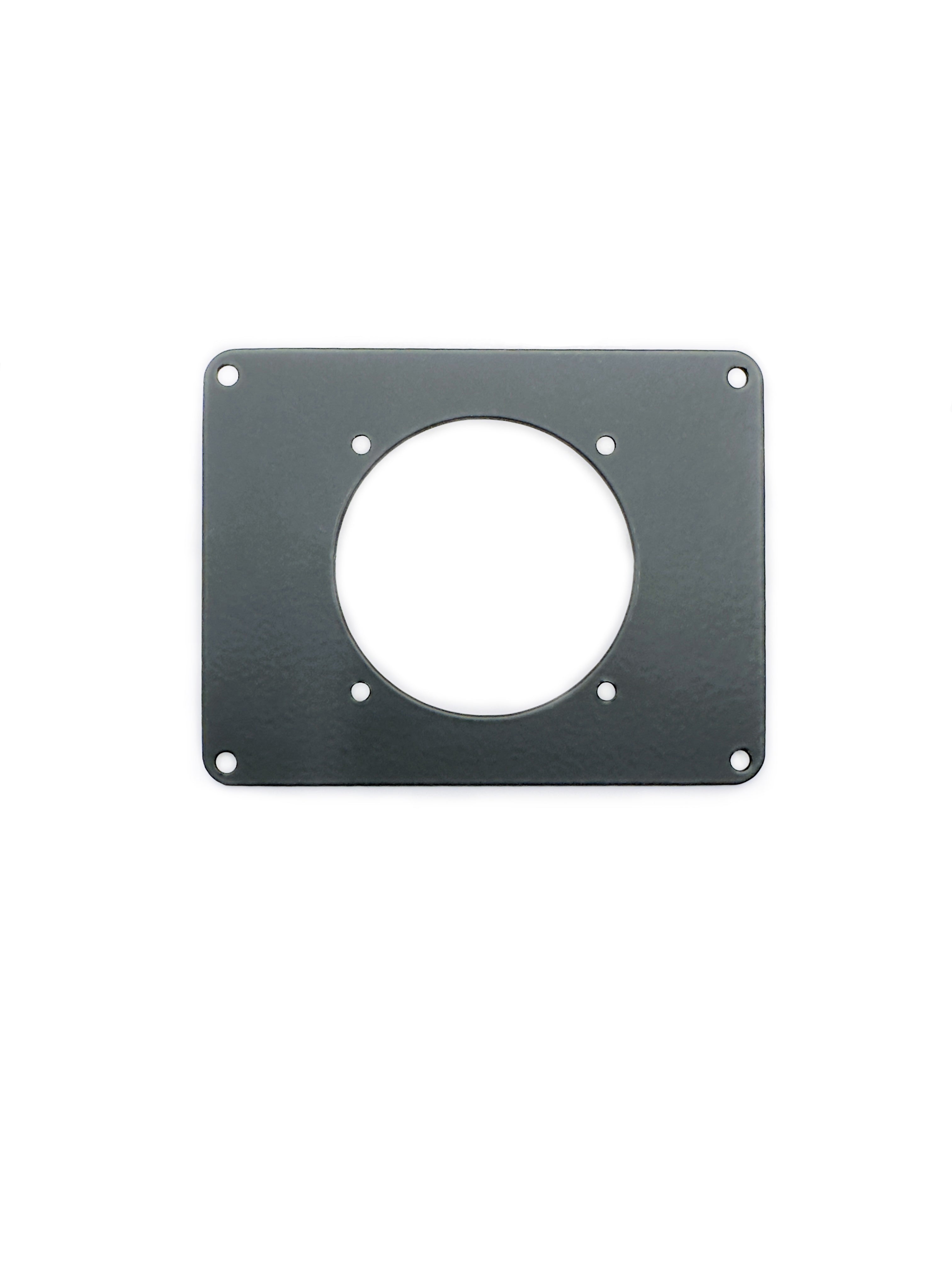

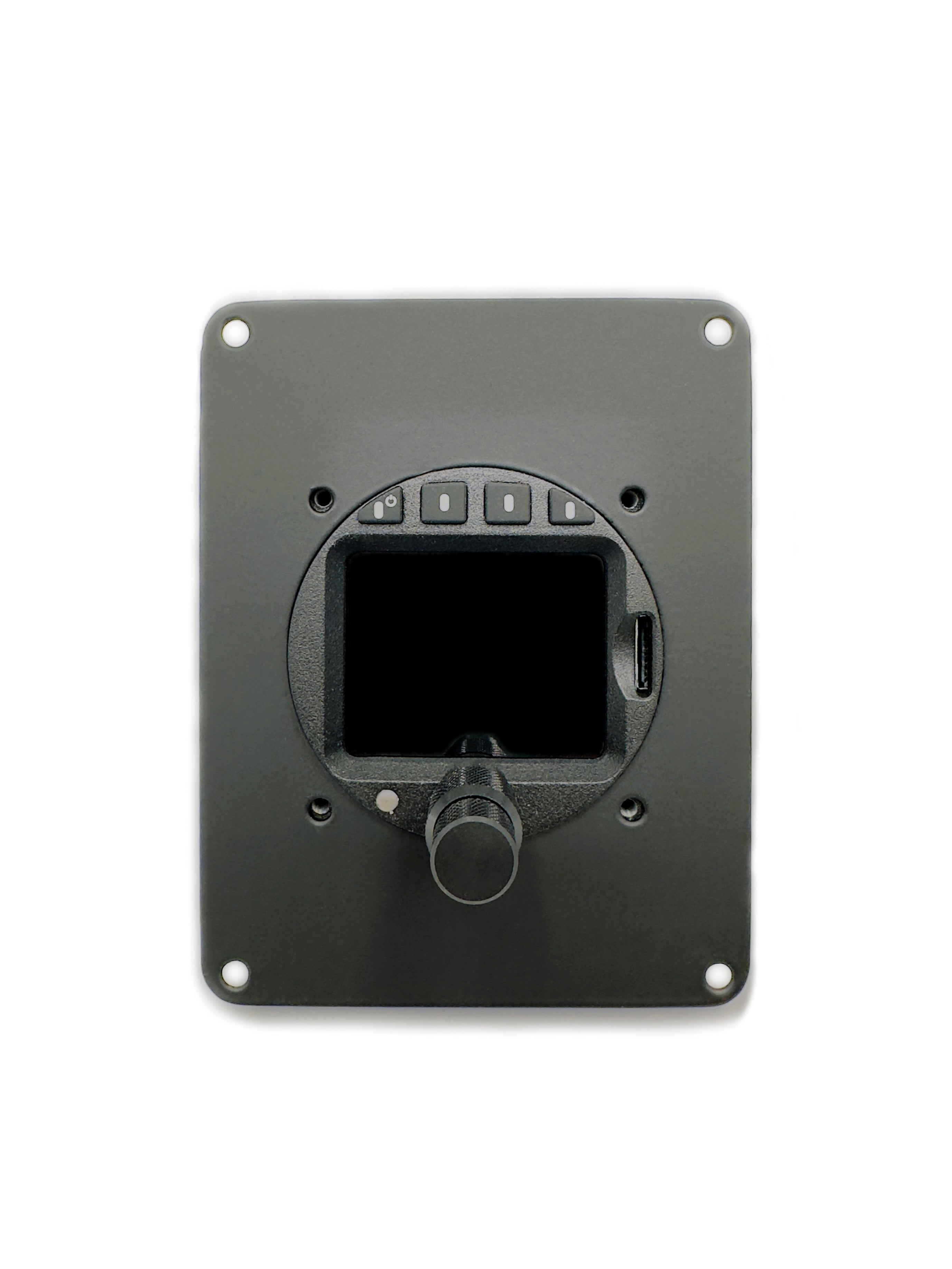

When upgrading from the HealthView I to the ATD-57, this overlay panel adapts the existing rectangular cutout to the new 2 1/4" circular cutout.  Powder coated matte-black with 4 symmetrical screw holes for either a vertical or horizontal orientation.

Note this overlay panel is only for the ATD-57 and does not fit the ATD-11 or ATD-80.

PROPERTIES

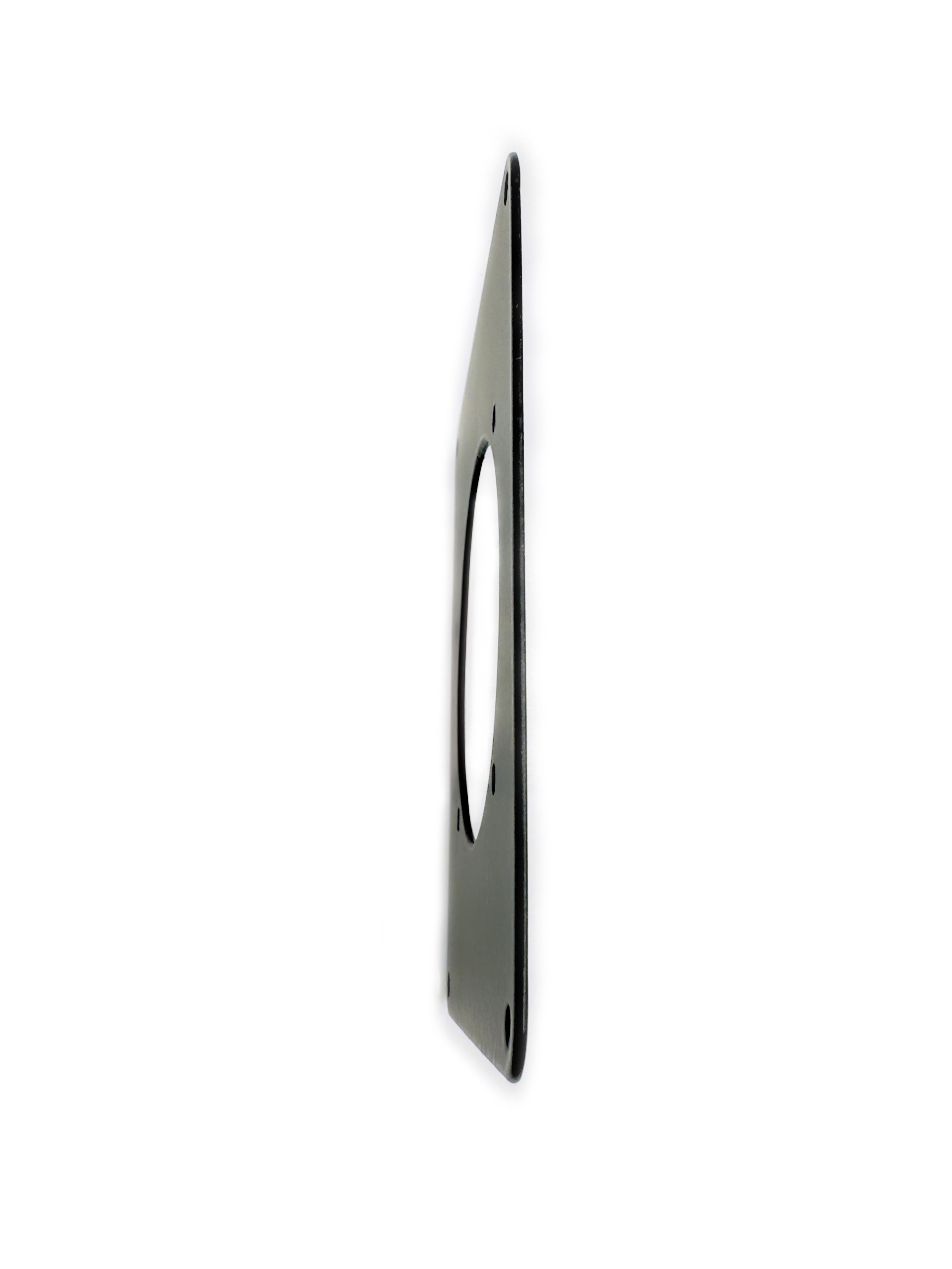

• Dimensions: 84.5 mm x 108.5 mm x 1.4 mm
• Mounting corner holes: 3.9 mm diameter
• ATD screw holes: 3.4 mm diameter
• Weight: 2.0 oz
