Aithre Inc

Metis In-Flight Weather Beacon

Sale price$495.00
SKU: AMWBX02
Quantity:

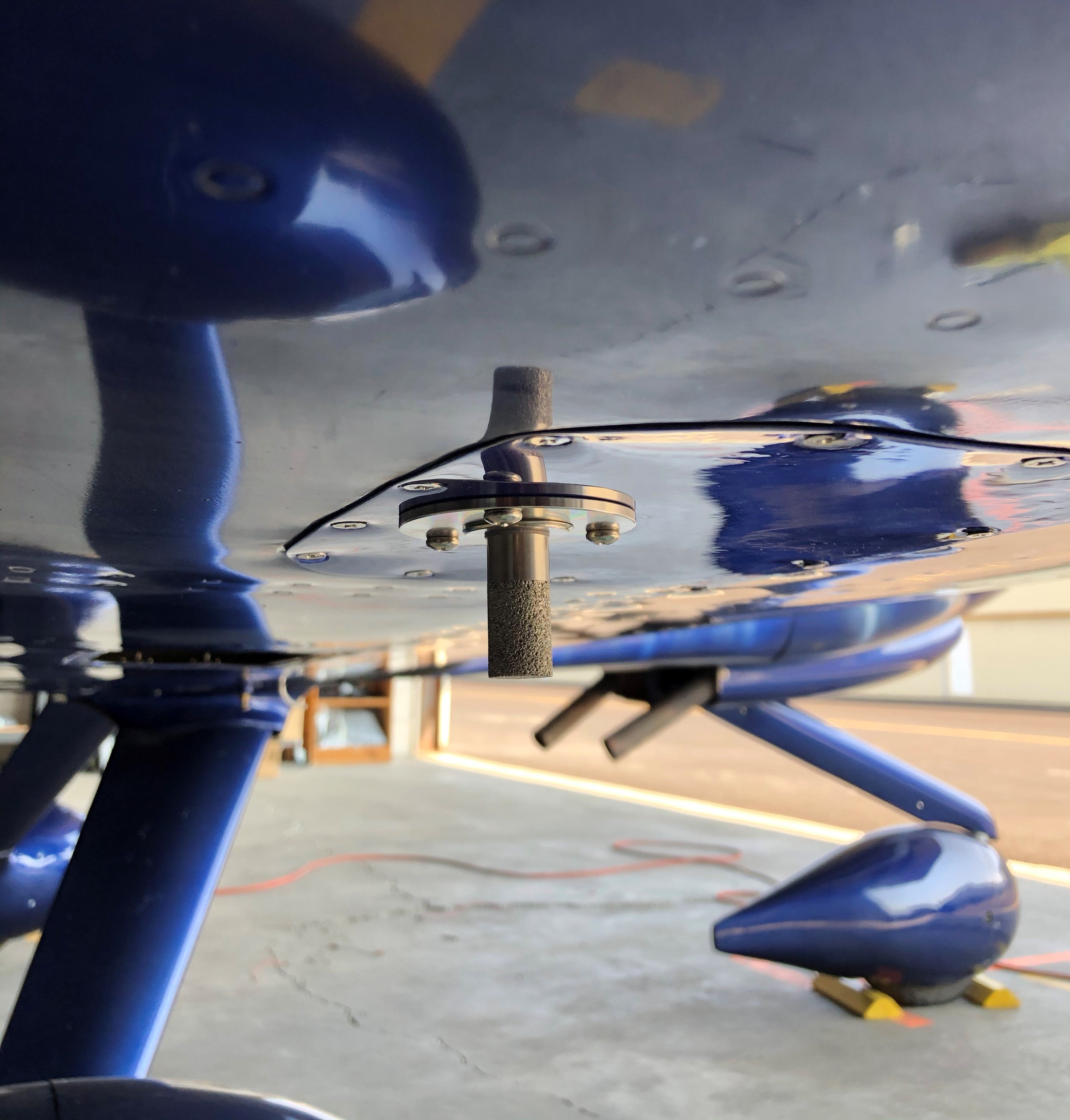

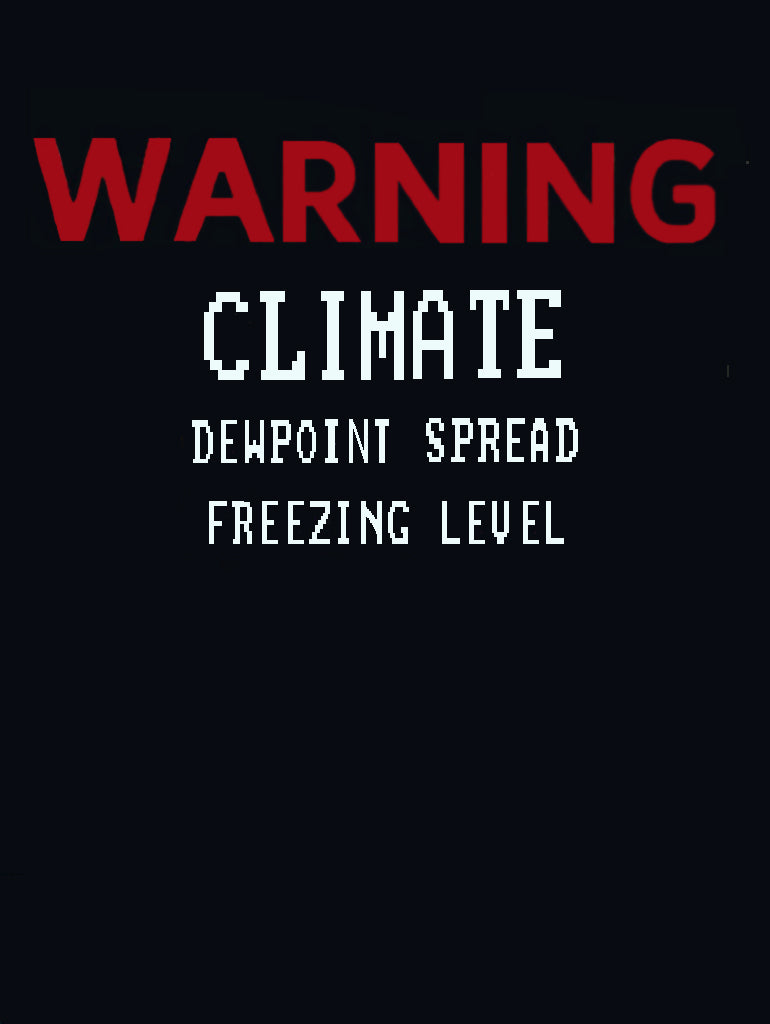

Approved for certified and experimental aircraft, the Metis extends Aithre's oxygen systems and health technology to monitoring in-flight atmospheric conditions.  Using a single under-the-wing elegant probe, the Metis provides real-time temperature, humidity, and dewpoint readings, enabling you to monitor for freezing levels and cloud levels relative to your aircraft.

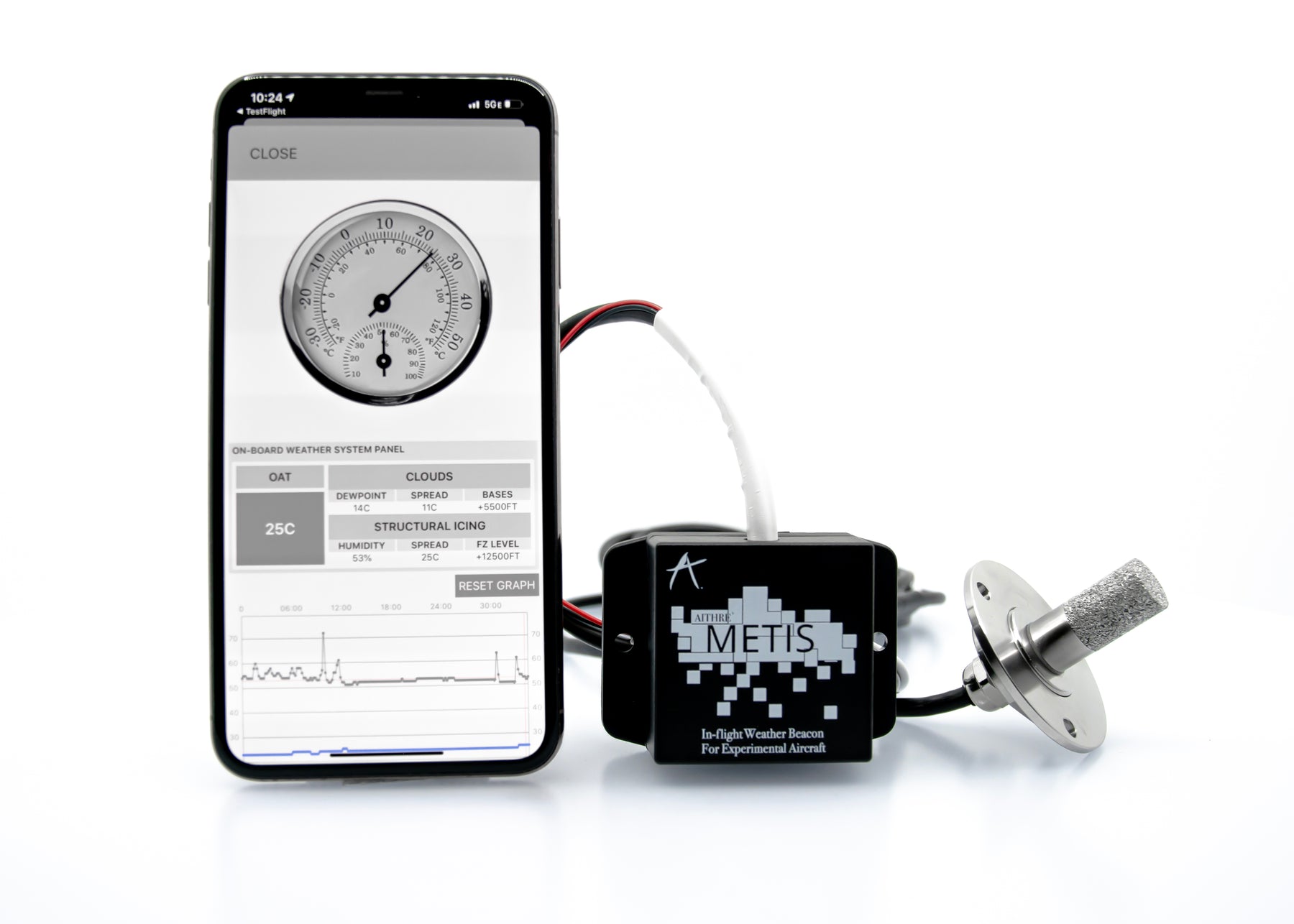

The Metis outputs the parameters via analog outputs, the Healthview avionics, and/or the Aithre Connect iOS app.

Analog outputs are provided for temp, dewpoint, and humidity, allowing universal input to your EFIS, such as Dynon and the G3X, or other engine monitoring avionics system.  The outputs are simple voltages that map linearly to the variable.

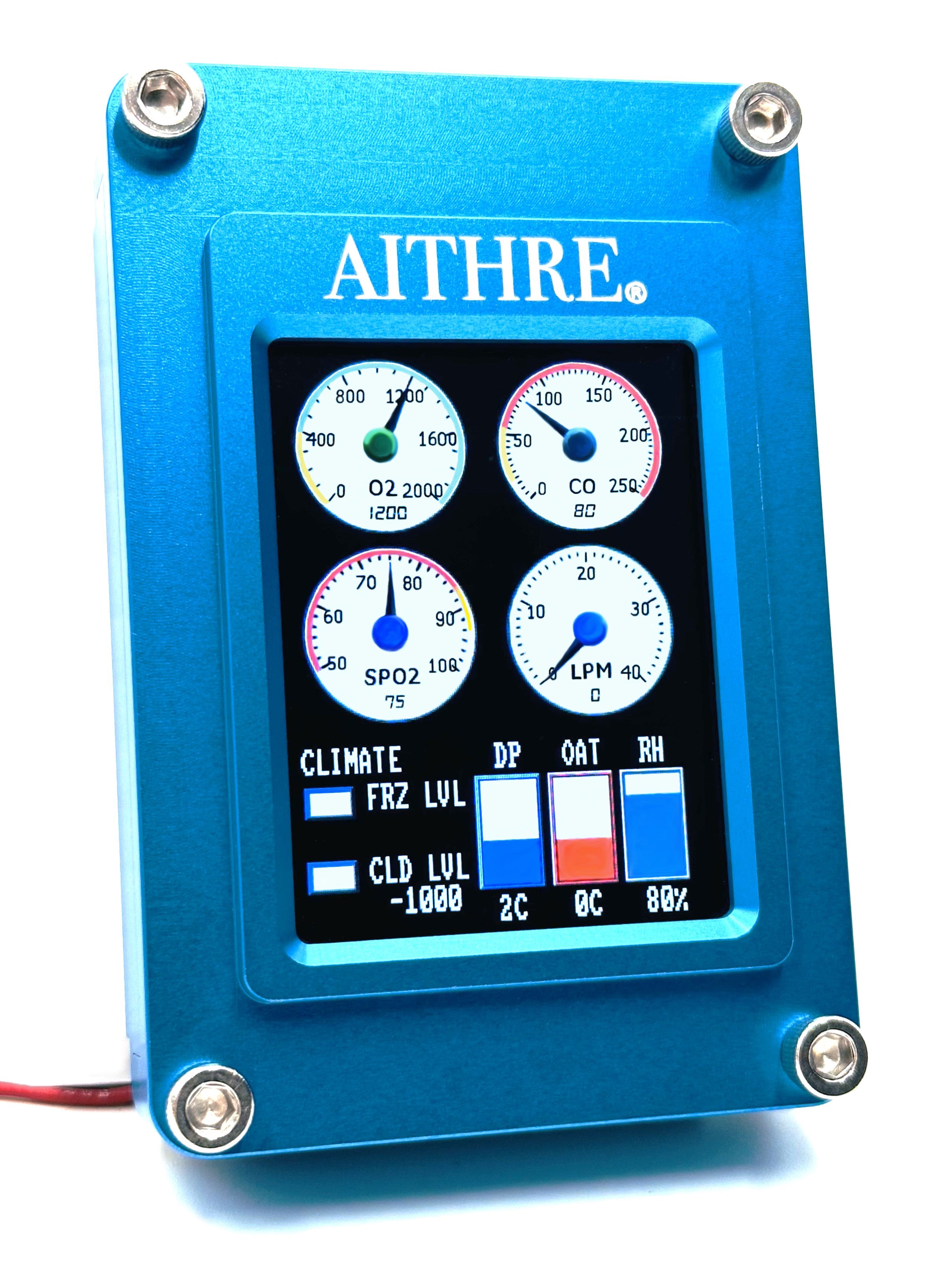

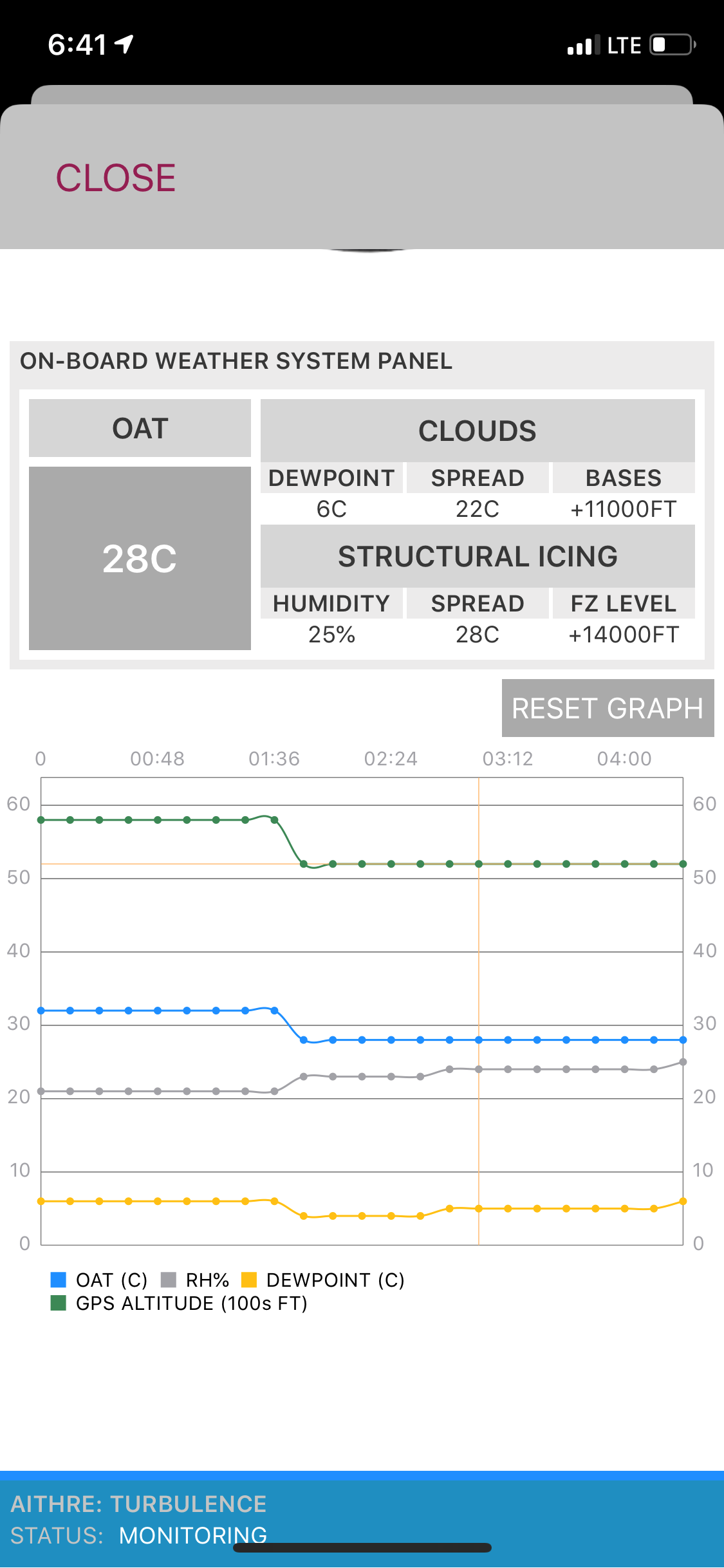

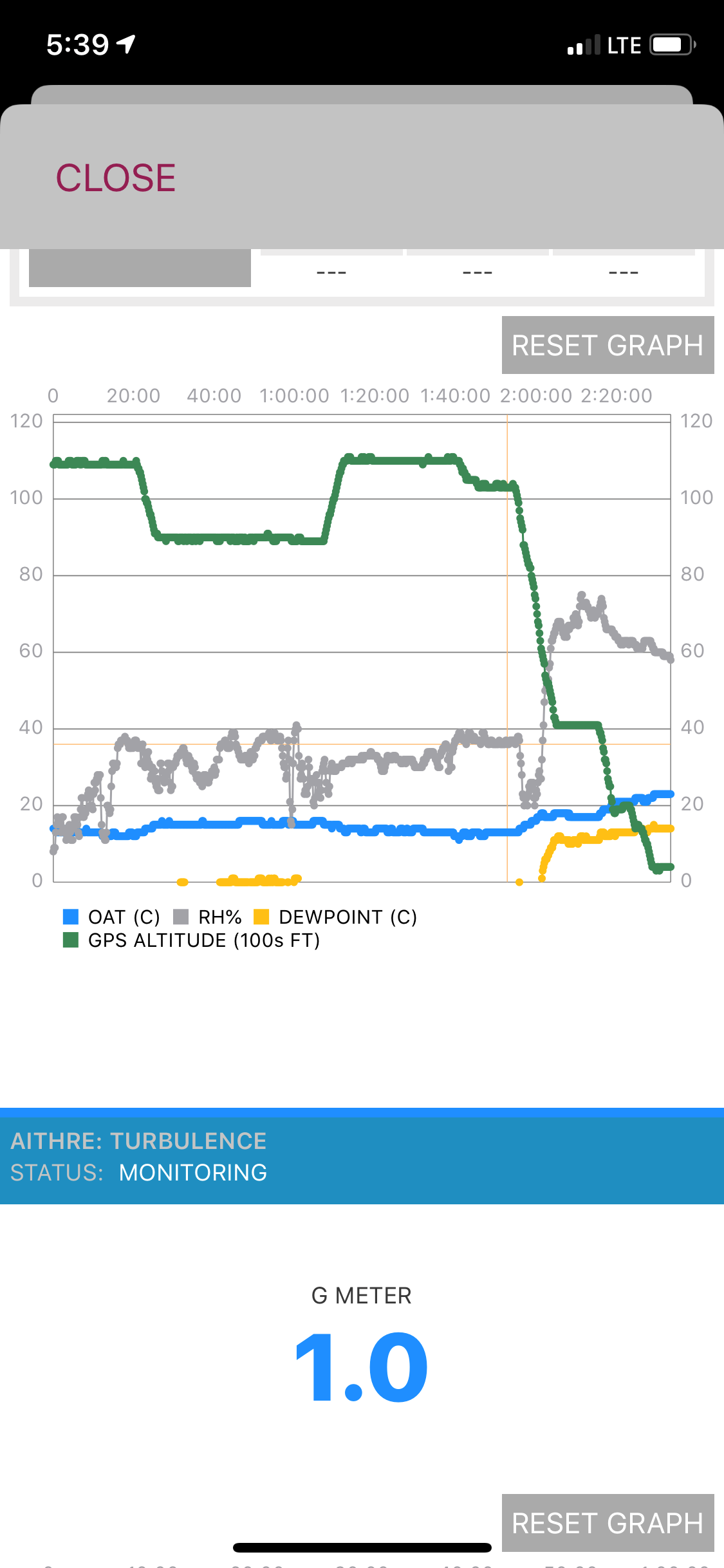

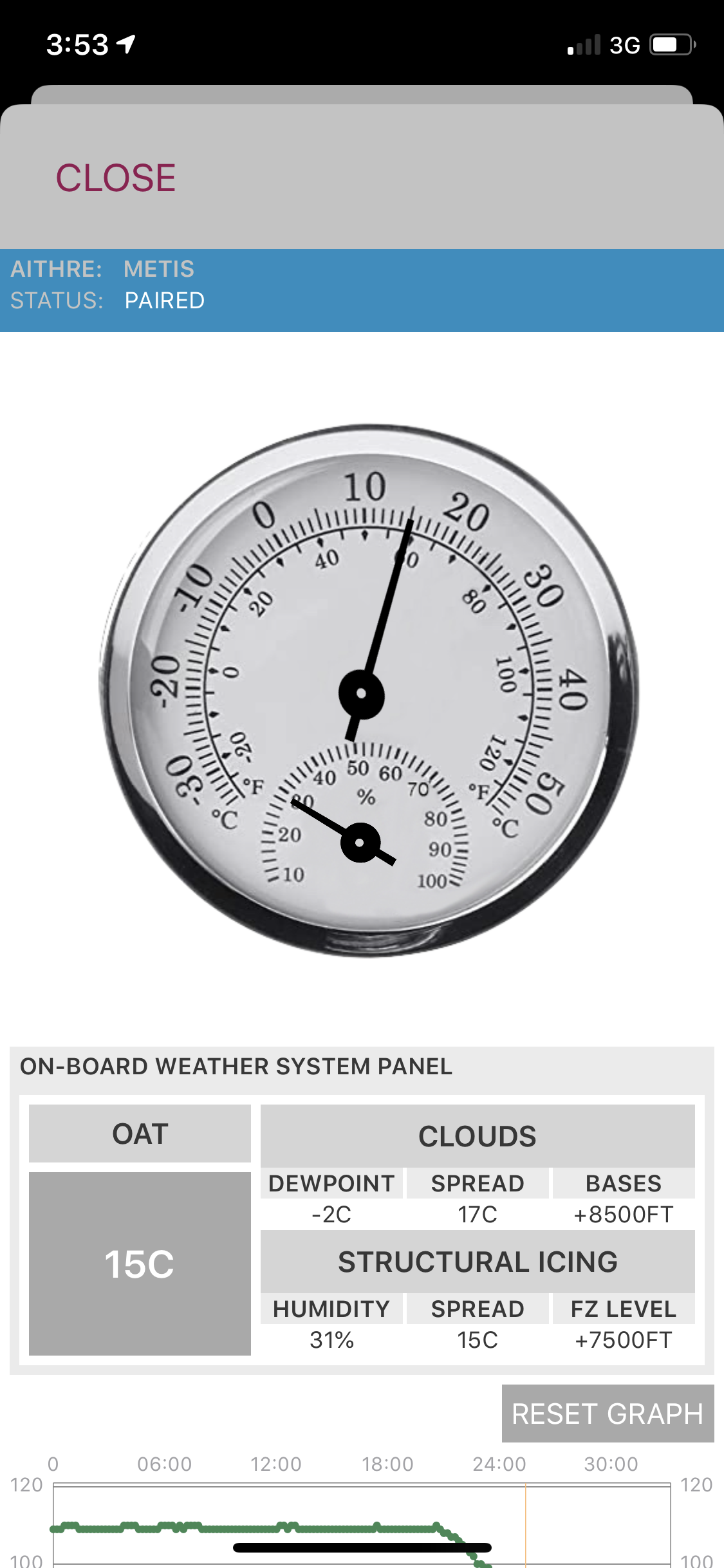

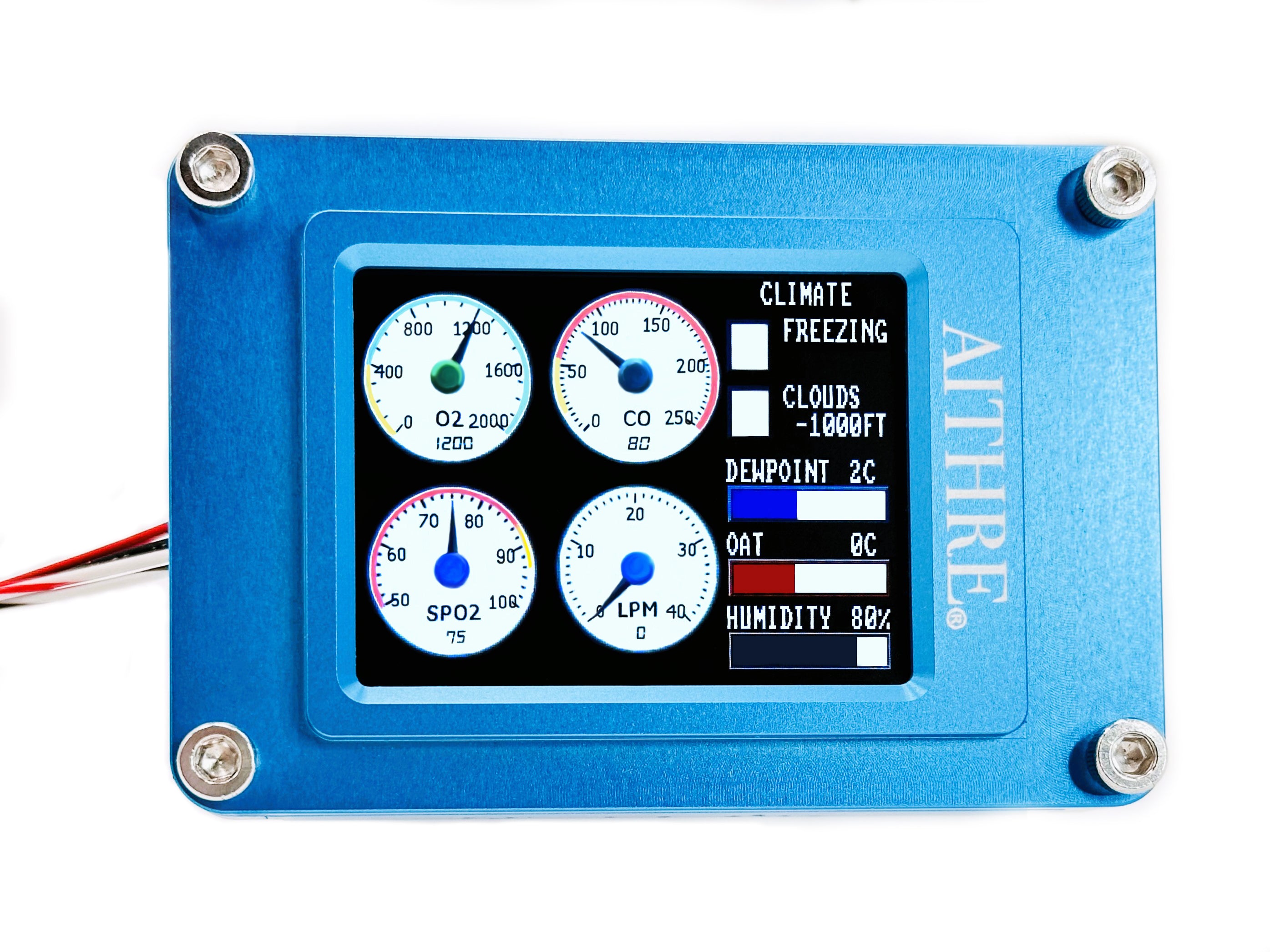

The Metis is compatible with the Healthview I and Healthview II avionics with the OAT, humidity, and dewpoint information being automatically wirelessly picked up and output.  Similarly, the Metis is enabled for wireless communication to the Aithre Connect iOS app to put the same data on your Apple iPhone or iPAD device.

The FAA has approved the Metis under NORSEE for installation in all Part 23 aircraft. Any make, any model, any year, including all Beechcraft, Mooney, Cirrus, Cessna, Diamond, Pipers, and every other aircraft certified and flown under Part 23. The simple installation can be performed by any A&P as a minor alteration with a logbook entry.

FEATURES

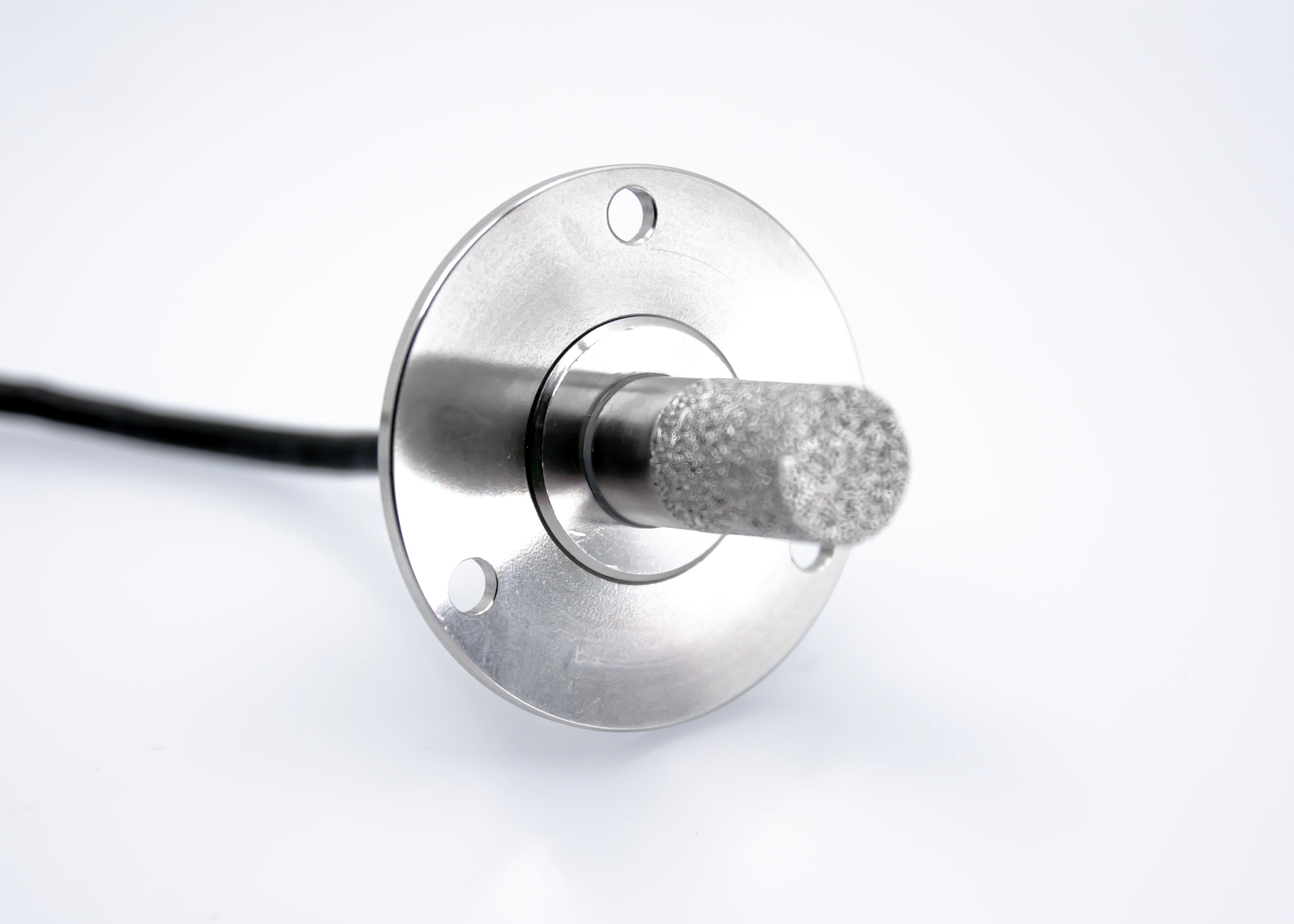

  • Stainless steel sensor probe with sintered mesh
  • Temperature range -40 to +60 Celsius
  • Dewpoint range -40 to +60 Celsius
  • Humidity range 0-100 %RH
  • Analog outputs for OAT, Dewpoint, and Humidity for Garmin G3X or Dynon Skyview
  • Healthview I and Healthview II compatible
  • Aithre Connect iOS app compatible

INCLUDES

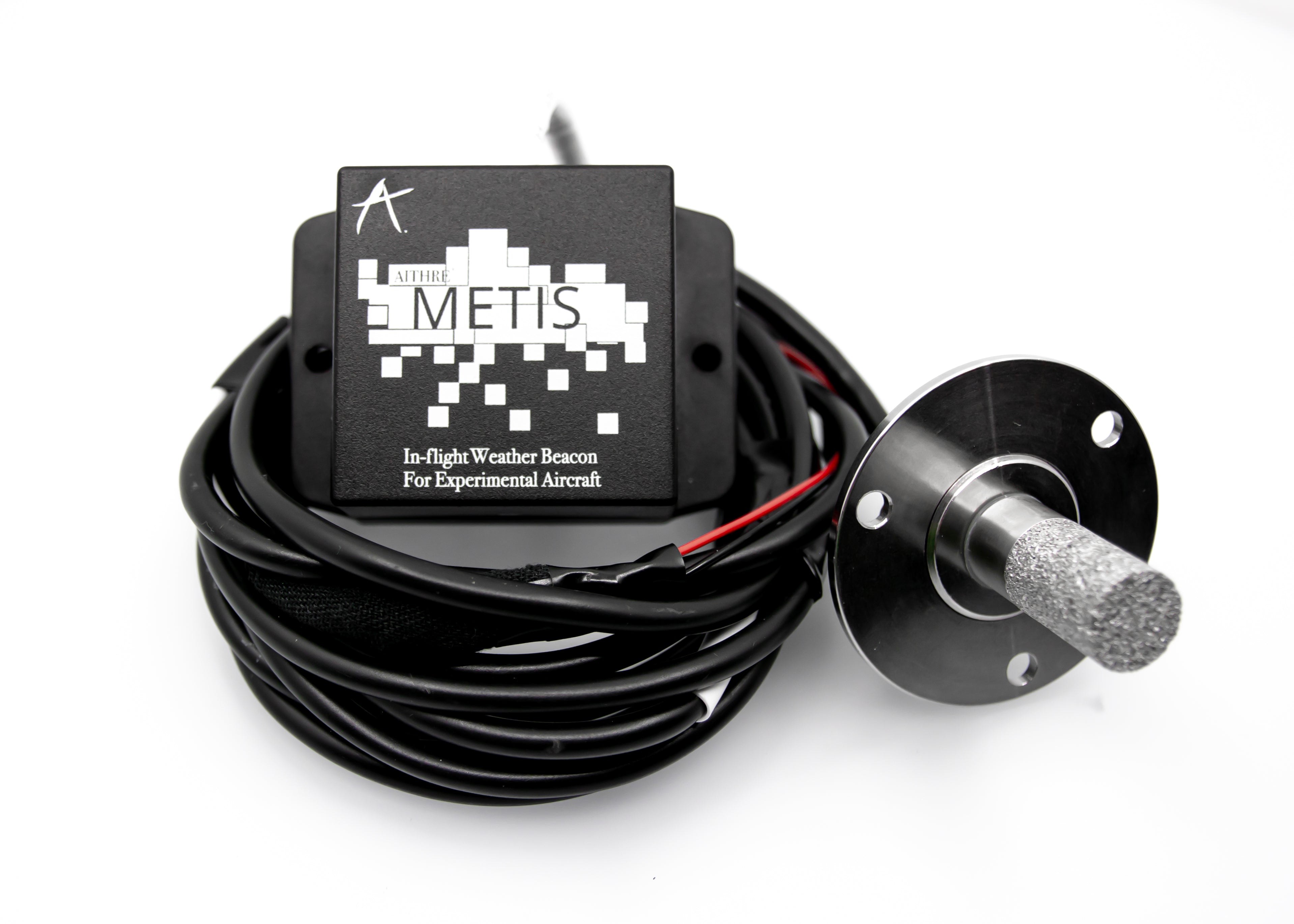

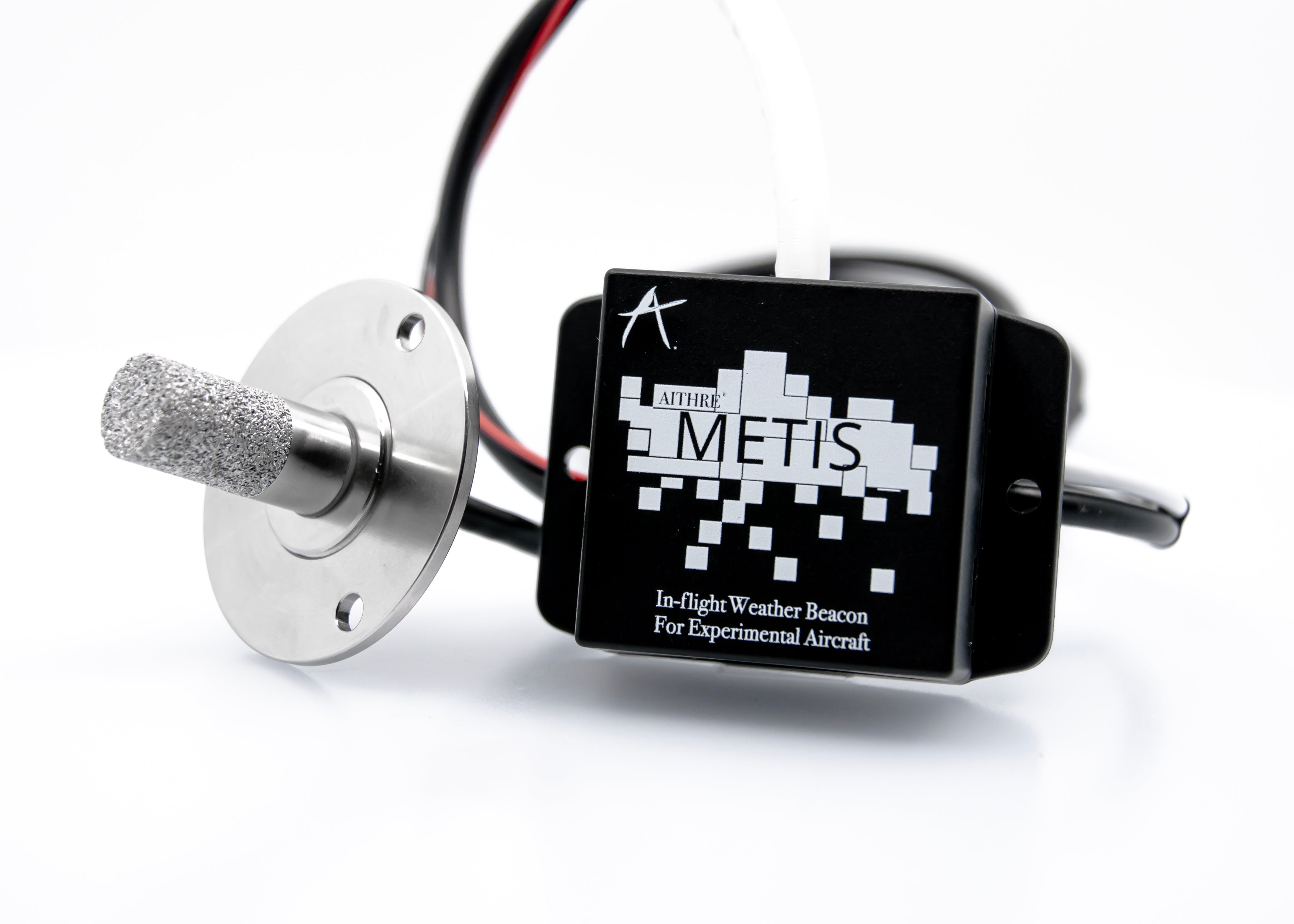

  • Sensor probe and mounting hardware

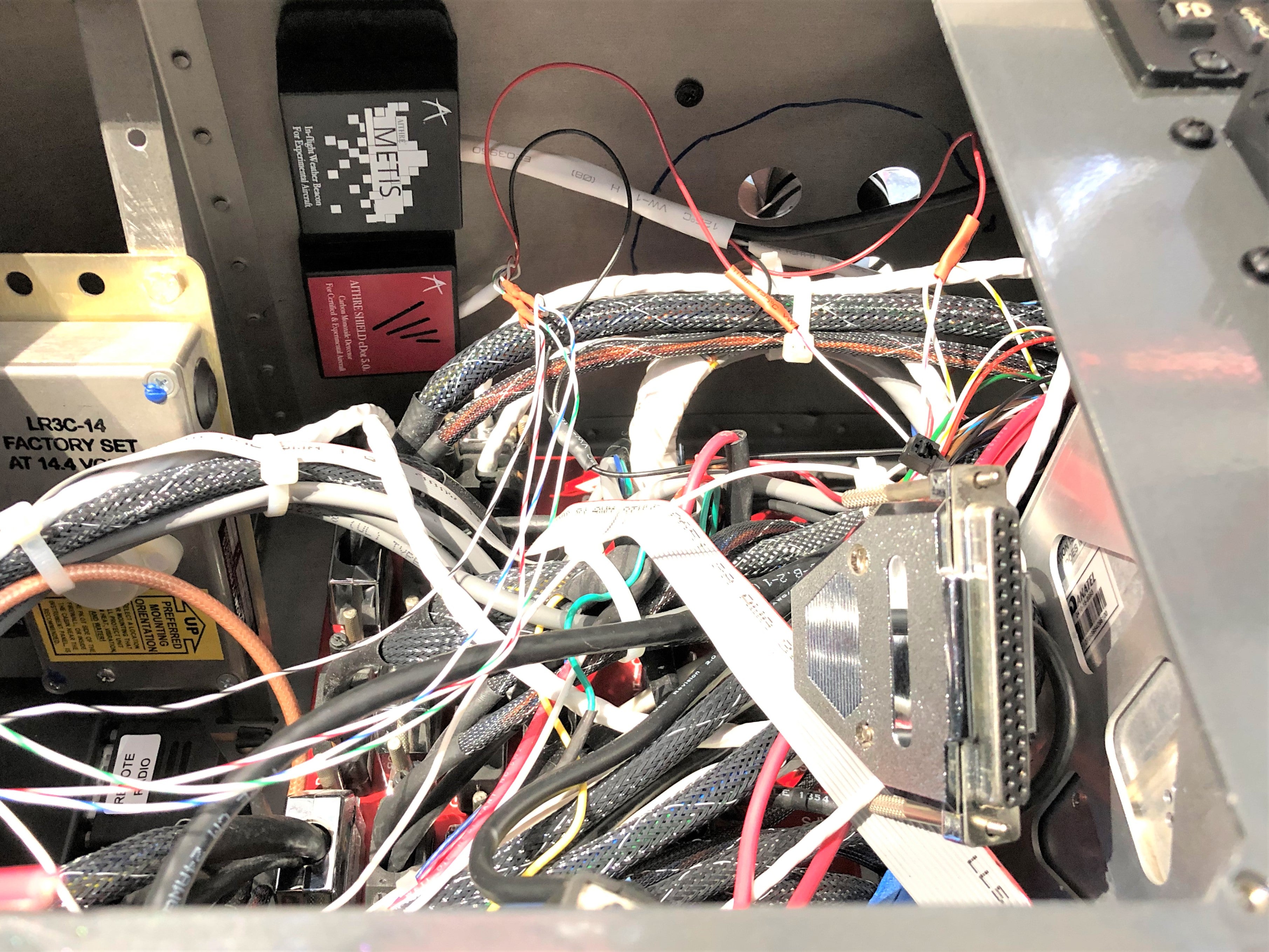

  • Metis remote-mounted control unit
  • Aithre Connect iOS app

Review additional supporting material here.
