Aithre Inc

Healthview Biometric Avionics and Oxygen Control System

Sale price$895.00
SKU: AHVAS03
Orientation:Portrait
Quantity:

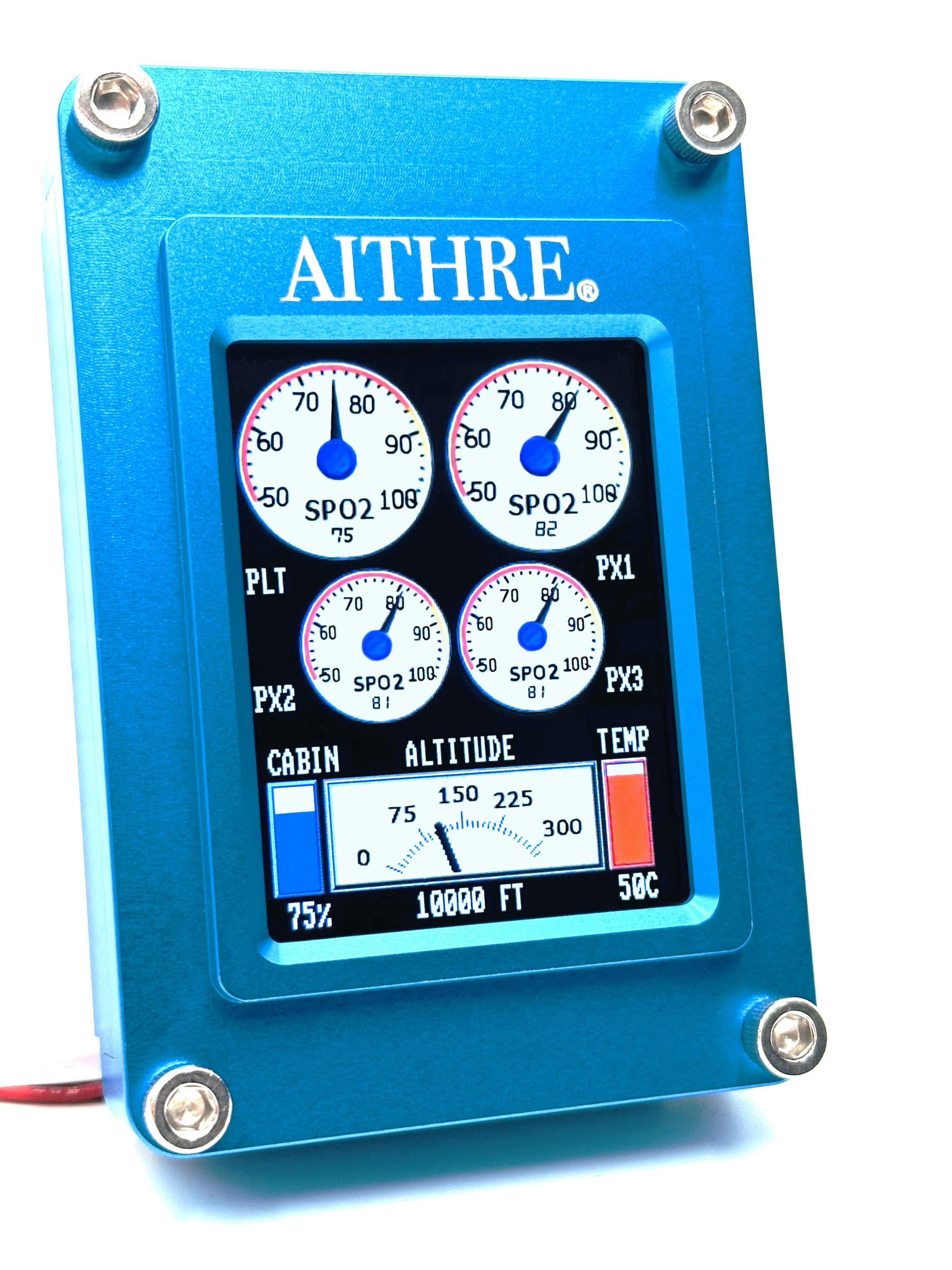

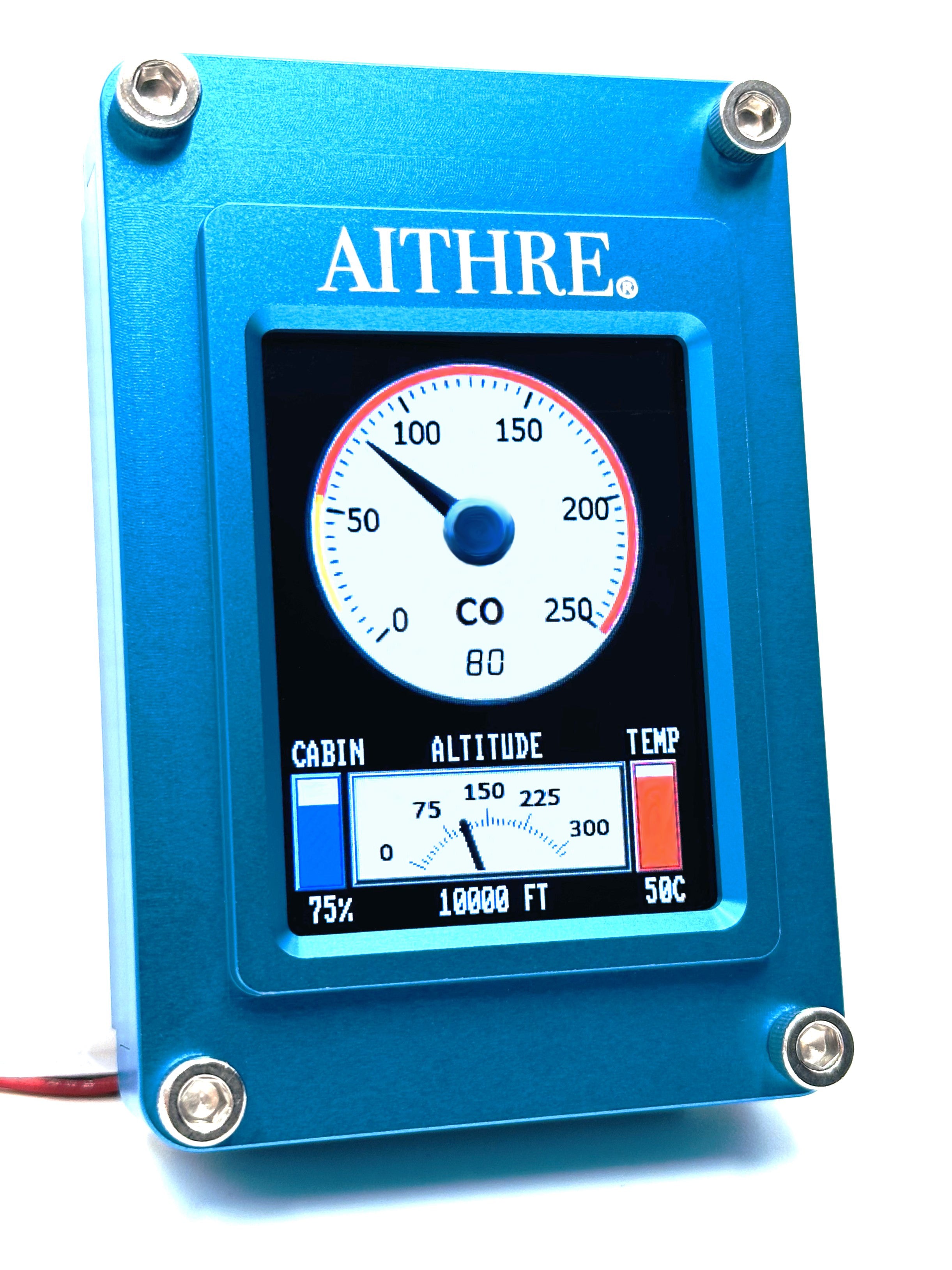

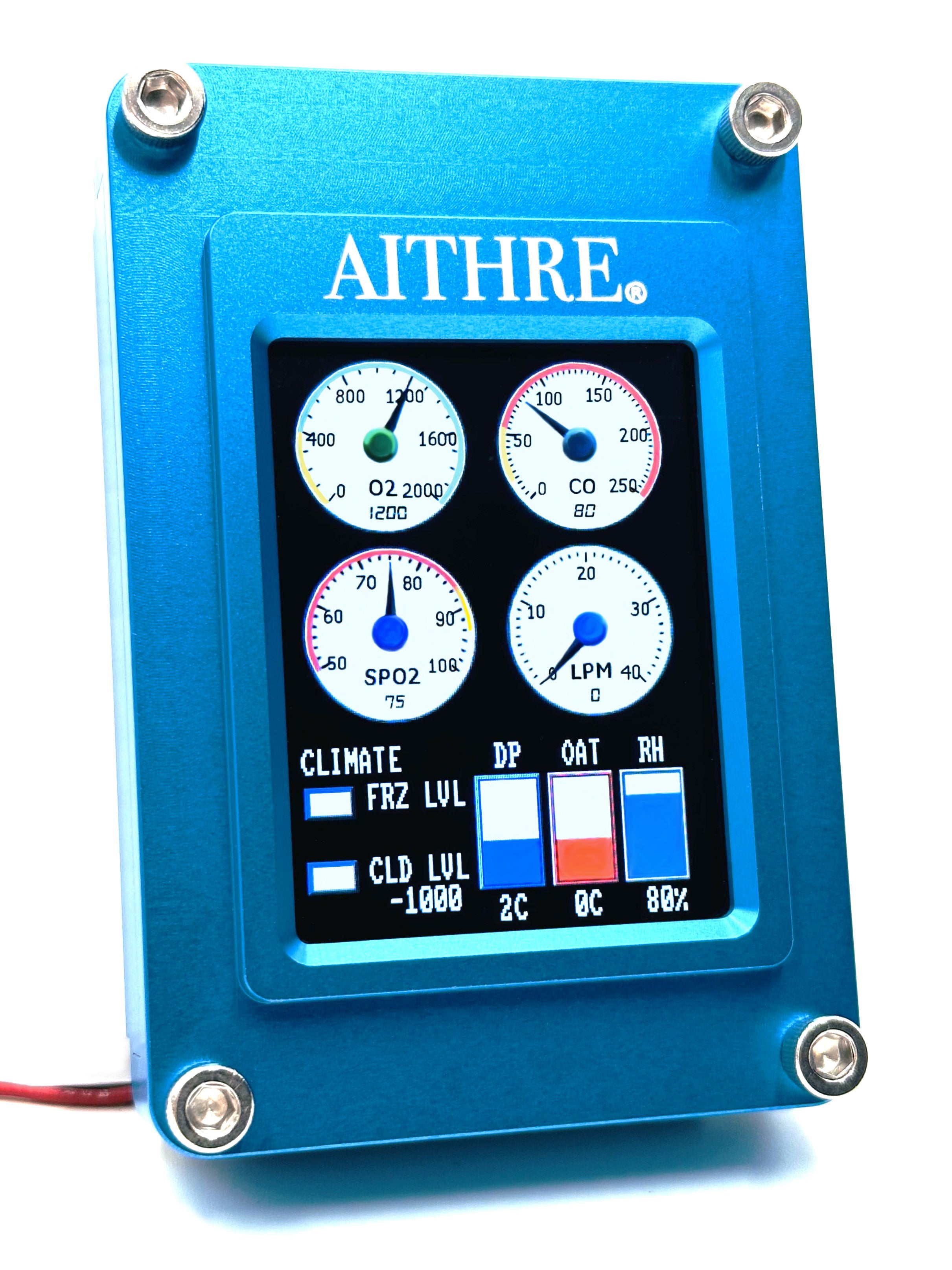

The Healthview is the first dedicated avionics display for health information, including gauges for blood oxygen, heart rate, respiration rate, flow rate, cabin pressure, cabin temperature, carbon monoxide, oxygen tank pressure, and wing tip temperature/dewpoint spread - and the first dedicated avionics display that controls your oxygen dosage per station based on altitude, carbon monoxide, blood oxygen, and heart rate.  Now added to the Healthview is support for the Aithre Turbo oxygen maker, with gauge outputs for flow rate, system temperature, humidity, and fault status.

This powerful avionics display is approved under NORSEE for all Part 23 aircraft, including pressurized aircraft, and all experimental aircraft, to help you monitor the health parameters that are most important to your mission.

The Healthview features a 240 x 320 pixel TFT resistive touch LCD display with rich and vibrant graphical gauges, enclosed in an ultra-compact aluminum anodized laser etched case. The Healthview is powered by three parallel low energy processors and a wireless communication module for an exciting low heat, low power, high functionality display.

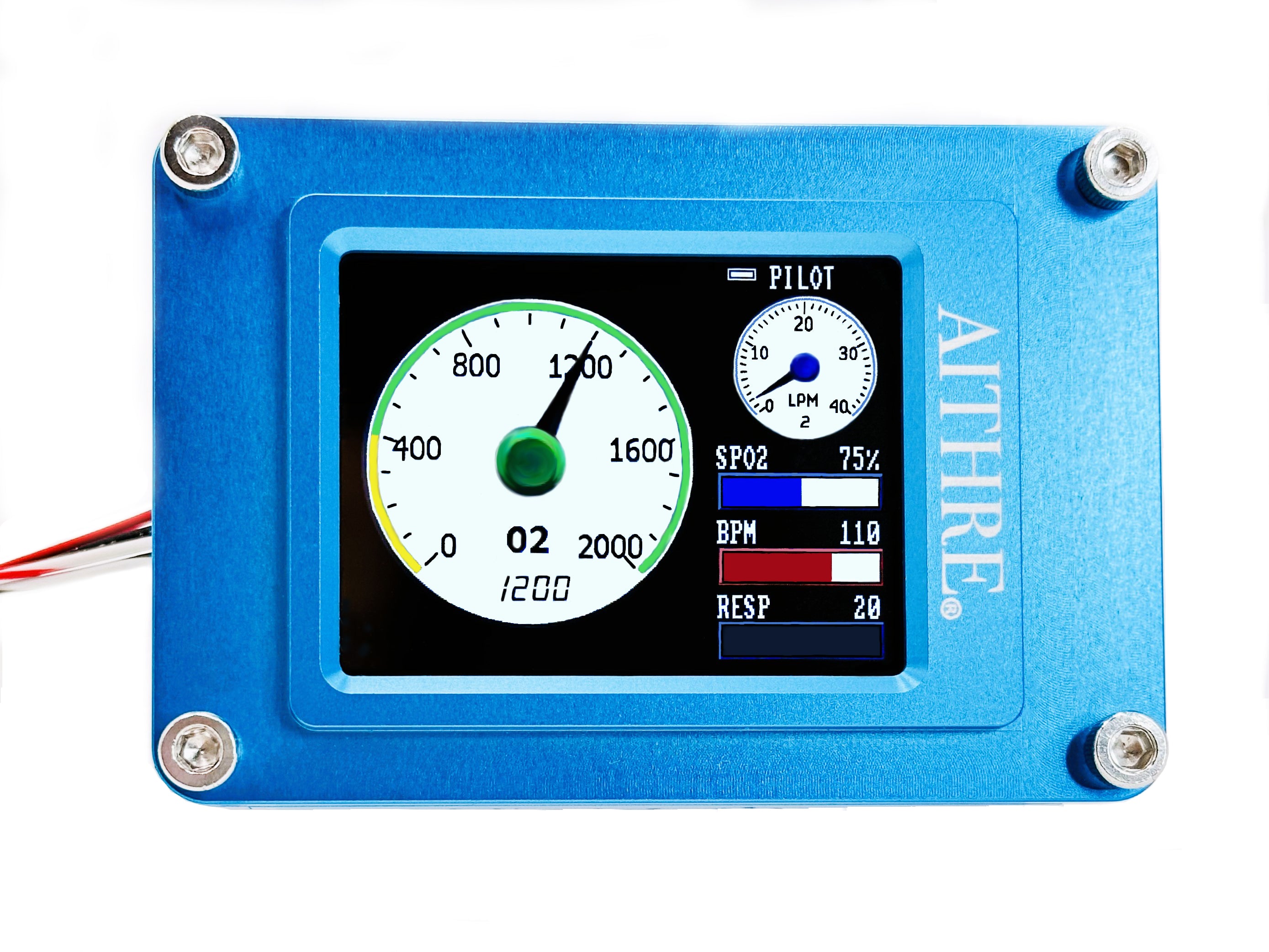

Now available as either in portrait or landscape orientation, the Healthview will fit in any panel design.  The portrait or landscape orientation must be selected on purchase as a variant and is not changeable in the field.

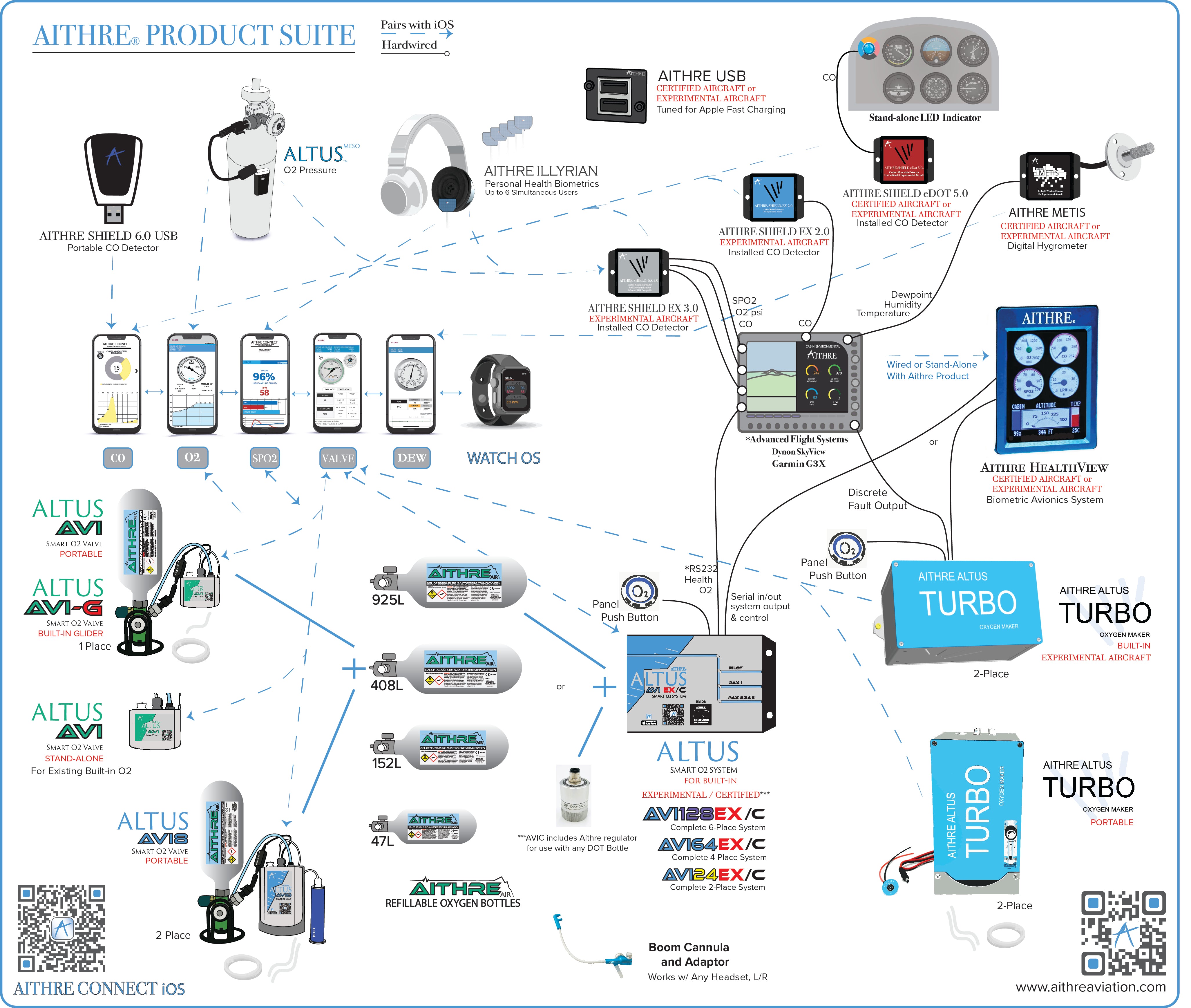

The Healthview works as a standalone device for cabin pressure altitude, using an internal barometric pressure sensor. But, the real power lies in the Healthview's ability to dynamically expand to feature any available Aithre device, wirelessly and with or without use of the popular Aithre Connect iOS app.  The Healthview is compatible with all Aithre devices, including the Shield series of carbon monoxide detectors, the Illyrian oximeter, the Meso oxygen pressure, the AVI oxygen systems, the Metis wingtip temperature/dewpoint sensor, and the Turbo oxygen maker.  Up to six Illyrian oximeters can be linked to the Healthview at any moment.  Many of the connections are wireless, but the Healthview also features serial channels linking directly to the Avi built-in oxygen systems or the Aithre Turbo oxygen maker systems.

When used with the built-in AVI oxygen systems, the Healthview controls the same using dedicated serial communication, including pulse dosage based on pressure altitude and blood oxygen saturation levels.  For advanced oxygen users, the Healthview provides an auto mode functionality that automatically turns the oxygen on and off on a station-by-station basis, using parameters of pressure altitude, SPO2, heart rate, and carbon monoxide.

You'll be proud to feature the elegant aluminum housing on your panel and it won't tax your battery, alternator, or useful load.  Power requirements are 12-18V and only 150 mA (0.15 A). Dimensions are 90mm x 61mm x 21.5mm and weight is just under 6 ounces.

Wiring is simple with only power and ground required. Optional wiring includes serial TX, RX wires for use with either the Aithre Turbo or the Aithre Avi.

The Healthview is now standard with all AVI oxygen systems.  If you purchased an AVI oxygen system before the existence of the Healthview, the AVI control unit will require a software and hardware upgrade to be compatible with the Healthview serial com features.

Additionally, if you have an existing Healthivew and want to use it with the Turbo oxygen maker for data output, your Healthview unit may require a software upgrade to be compatible with the Aithre Turbo.

Please call ahead of ordering to confirm the version information.
