Aithre Turbo Oxygen Maker Portable

Sale price$2,745.00
SKU: ATO2G02PP
Quantity:

Turbo Oxygen Maker Systems are in high demand.  Lead time is currently 30 days from purchase.

The Aithre Turbo Oxygen Maker portable is the World's first oxygen generator optimized specifically for light aircraft and general aviation.  With enough oxygen supply to circumnavigate the World many times, the Aithre Turbo Oxygen Maker will unlock your aircraft potential and support your mission, no matter where it takes you.

HOW IT WORKS

The Turbo concentrates oxygen real-time while you fly, anytime, anywhere, using a fraction of the capacity of most general aviation electrical alternators. Based on proven pressure swing adsorption technology (PSA), and optimized for general aviation application, the Aithre Turbo packs a punch with continuous >93% pure oxygen at 1 LPM using just 6 amps or 80 watts with 12-14V aircraft power.

A high-performance compressor pump is used to pressurize intake air and feed it through zeolite sieve beds.  The sieve beds retain the nitrogen in the air and pass oxygen through the adsorption technique (PSA).  PSA is a proven method of oxygen generation in the medical field, but the Turbo is different in that it operates above 10k MSL where the air is thinner.

    NO BATTERY TO CHARGE

    Unlike medical portable oxygen concentrators, the Turbo does not use a Lithium battery.  Instead, the Turbo relies exclusively on ship power 12-14V, using the aircraft battery or engine-driven electrical alternator.  At just 80W or approximately 6 amps at 14V supply, the Turbo will fit within virtually any alternator capacity and this results in reduced maintenance, a longer service life, and increased flight safety.

    SMALL FOOTPRINT AND WEIGHT

    With a small footprint of 22.5 cm x 14.5 cm x 15 cm and a weight of just 6.8 lbs., the Aithre Turbo will free up space and expand useful load as compared to traditional legacy bottle systems.

    PORTABLE FOR CERTIFIED AIRCRAFT OR EXPERIMENTAL AIRCRAFT

    The Aithre Turbo portable includes a slotted extension on the base and back for securing the Turbo using a seatbelt or other strap in the aircraft.

    For power, the Aithre Turbo portable is designed to operate with our FAA approved Aithre DC power cannon plug (included), or using a 12V cigarette-style adapter (sold separately).  The Aithre DC power cannon plug exposes 12-14V ship power and is positionable at any convenient location within the aircraft for powering the Aithre Turbo.  The Aithre DC power cannon plug is installable in any Part 23 aircraft or experimental aircraft under NORSEE, as a minor alteration and requires only an A&P logbook entry.

    HEALTHVIEW, AITHRE CONNECT iOS, AND AVIONICS SUPPORT

    Aithre has pioneered the integration of health biometrics into the avionics of the aircraft, and the Turbo is no exception: the Turbo constantly monitors total flow, onboard temperature, pressure altitude, and faults.  Data is output via BLE to the Aithre Connect iOS app, and optionally to the Healthview.  For supporting avionics, a discrete fault output 0-12V may be connected to throw a display message in response to a fault condition.

    CONCENTRATION MONITORING

    The oxygen concentration produced by the Aithre Turbo is >93% for 2000 hours or 2 years, whichever comes first.  There are two primary methods to verify the concentration and ensure that the Turbo is operating correctly, using the Aithre Illyrian II wearable oximeter and using a portable oxygen concentration tester.

    Continuously measured blood oxygen provides a direct indication of the sufficiency of breathing oxygen during flight.  The Aithre Illyrian II is the only haptic wearable that provides a continuous readout of blood oxygen to modern avionics, the Aithre Healthview, the Aithre Connect iOS app, and via the native haptic vibratory alerts.  It is the best way to monitor your blood oxygen and the verify the flow, concentration, and operation of the Turbo O2i.

    Additionally, a portable oxygen concentration tester can be used on the ground prior to flight to test the flow and purity of oxygen generated using the Turbo. The test is simple and takes just seconds to perform using an Aithre provided oxygen concentration tester.

    The Aithre Illyrian II and portable oxygen concentration tester are not included and must be purchased separately.

    MAINTENANCE

    Nothing is airborne for free, but operation of the Turbo is very cost-effective as compared to FBO transfilling costs.  With the Aithre Turbo, there is a sieve bed replacement that will need to occur every 2 years or 2000 hours of usage to ensure high purity oxygen generation.  There are two options for the maintenance, including either a mail-in service or a factory refurbished exchange with zero down time.  Information on the same is accessible from our website main menu or via the separate maintenance product listings.

    SAFETY

    There are a number of significant safety benefits of the Turbo.

    Notably, the Aithre Turbo does not itself store any pure oxygen so the risks associated with carrying, transporting, and filling pressurized oxygen vessels can be eliminated.

    Additionally, the Aithre Turbo does not include any Lithium battery.  While portable oxygen concentrators designed for medical purposes rely upon a Lithium battery, this is unacceptable for aviation environments due to the combination of pure oxygen, heat, and battery fire risk.  The Turbo relies instead on clean continuous power directly from the aircraft alternator, ship battery, and any backup ship battery available.

    Other safety features include high temperature Tefzel internal wiring, three high speed cooling fans, over temperature monitoring with over temperature shutdown, and capacitive electrical noise reduction.

    OPTIONAL BACKUP CARBON FIBER COMPOSITE OXYGEN BOTTLE

    For casual use of the Aithre Turbo Oxygen Maker up to and around 12.5k MSL, the serious risks of hypoxia and oxygen deprivation are relatively low and failure of any part of the Turbo or electrical system can be dealt with by descending.  However, if you plan on using the Turbo for oxygen above 12.5k MSL, it is advisable to consider a small backup oxygen bottle.

    A simple Aithre fixed flow 47L or 152L oxygen bottle may be used for emergency backup. These lightweight carbon fiber composite bottles provide for 2 and 6 hours of continuous flow at approximately 0.5 LPM for an added layer of safety.



    FEATURES:

    • Up to 18k MSL for one person and up to 15k MSL for two people (Illyrian II SPO2% determine personal altitude limits)
    • >93% O2 purity for 2000 hours or 2 years at 1 LPM
    • 12-14V direct aircraft power, 80 Watts (6 Amps at 14V)
    • 6.8 lbs.
    • 22.5 cm x 14.5 cm x 15 cm dimensions
    • Push button activation
    • Integrated flow, pressure altitude, humidity, and temperature monitoring
    • Twin dual ball bearing cooling fans
    • Over-temperature protection and fault outputs
    • Aithre Connect iOS app compatible
    • 2 year consumable lifetime with mail-in service

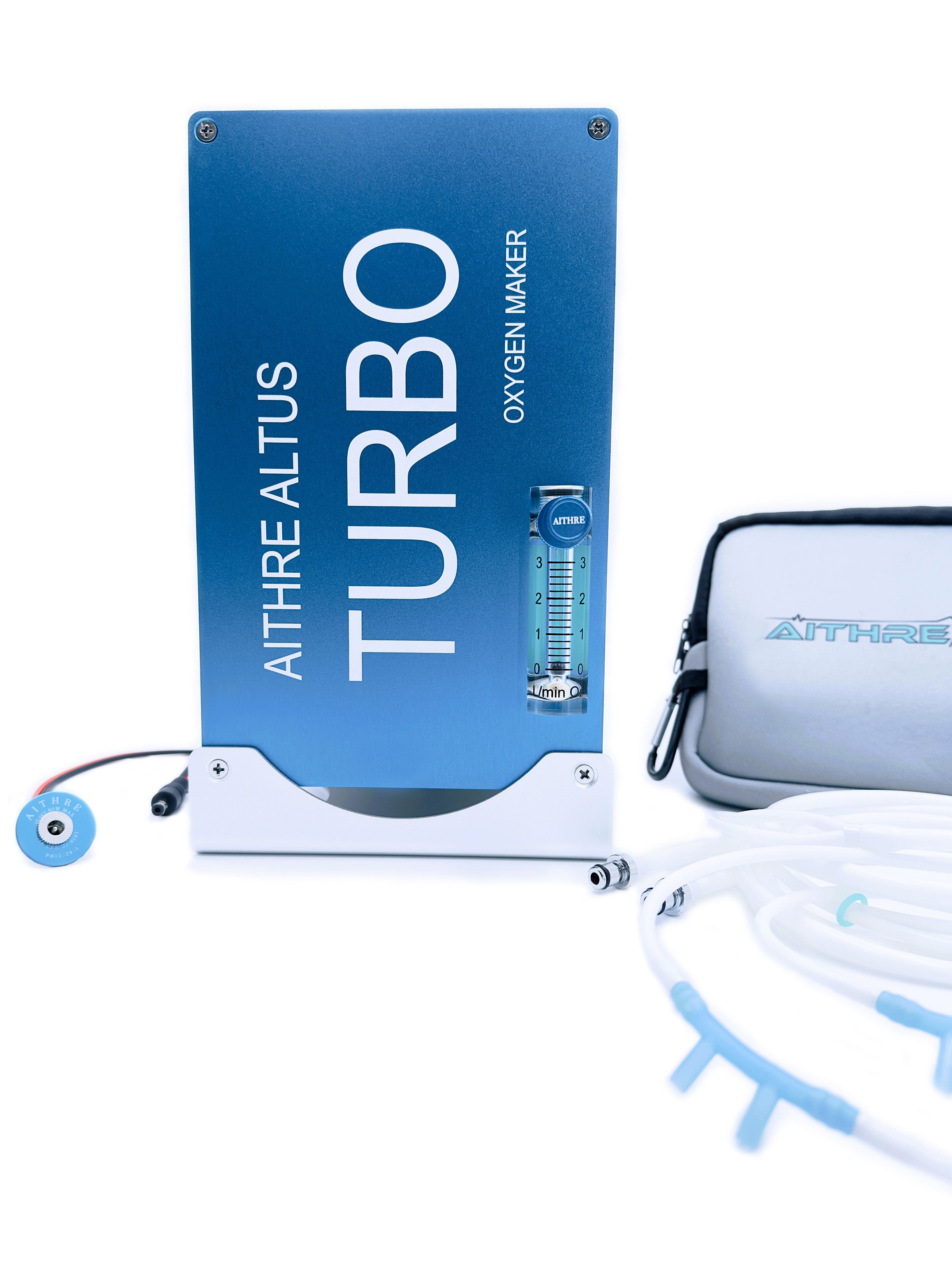

    INCLUDED

    • Aithre Turbo oxygen maker
    • Aithre silicone cannulas (2)
    • Aithre neoprene cannula pouch
    • FAA-approved DC power cannon plug and placard

    RECOMMENDED COMPANION PRODUCTS

    • Illyrian II Wearable Haptic Oximeter
    • 47L or 152L Backup Oxygen Bottle
    • Aithre Boom Cannula
    • Aithre Turbo Oxygen Concentration Tester
    • Turbo 12V Cigarette-Style Adapter
