The Aithre Turbo Oxygen Maker is the World's first oxygen generator optimized specifically for light aircraft and general aviation. With enough oxygen supply to circumnavigate the World many times, the Aithre Turbo Oxygen Maker will unlock your aircraft potential and support your mission, no matter where it takes you.

The Turbo O2i HEX is a hybrid concentrator and bottle system for four-places that generates oxygen using 160W of electrical power and only dips into the oxygen bottle supply when needed - at high altitudes or on user request. When the concentrated oxygen supply is sufficient for the mission, the bottled oxygen supply remains unused.

HOW IT WORKS

The Turbo concentrates oxygen real-time while you fly, anytime, anywhere, using a fraction of the capacity of most general aviation electrical alternators. Based on proven pressure swing adsorption technology (PSA), and optimized for general aviation application, the Aithre Turbo packs a punch with continuous >93% pure oxygen at 1.4-2.8 LPM using just 12 amps or 160 watts.

A high-performance compressor pump is used to pressurize intake air and feed it through zeolite sieve beds. The sieve beds retain the nitrogen in the air and pass oxygen through the adsorption technique (PSA). PSA is a proven method of oxygen generation in the medical field, but the Turbo is different in that it operates above 10k MSL where the air is thinner.

The Turbo O2i HEX is a hybrid system that includes two independent concentrator systems and an oxygen bottle. The concentrators provide virtually unlimited oxygen at 1.4-2.8 LPM to support two people up to 18k MSL and four people up to 15k MSL, without use of the oxygen bottle. The oxygen bottle is on standby to further increase the oxygen flow above 15k MSL, or as needed, for an additional 0.5 - 5.0 LPM.

The oxygen bottle also serves as a backup supply of oxygen independent of the Turbo oxygen maker system. A separate backup plumbing line and emergency cannula plug are included to make oxygen available even in the event of electrical failure or Turbo concentrator malfunction.

Standard with the Turbo O2i is the HealthView III avionics system. Along with output of Turbo O2i total flow rate, oxygen injection flow rate, oxygen bottle pressure, and onboard temperature, the HealthView outputs many other health and environmental parameters and allows for control of the injection component.

NO BATTERY TO CHARGE

Unlike medical portable oxygen concentrators, the Turbo does not use a Lithium battery. Instead, the Turbo relies exclusively on ship power 12-14V or 24-28V, using the aircraft battery or engine-driven electrical alternator. At just 160W or approximately 12 amps at 14V supply, the Turbo O2i HEX will fit within virtually any alternator capacity and this results in reduced maintenance, a longer service life, and increased flight safety.

SMALL FOOTPRINT AND WEIGHT

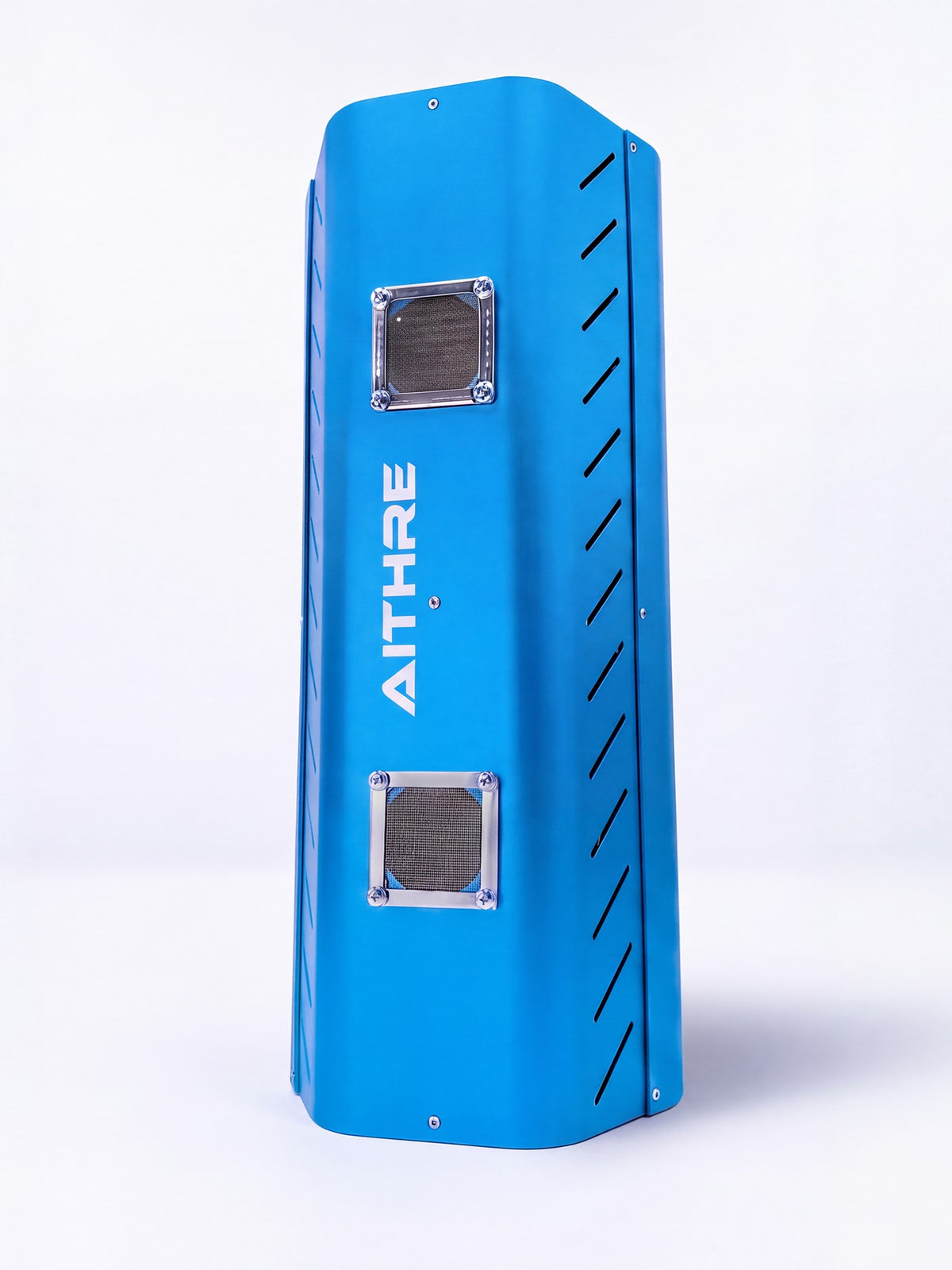

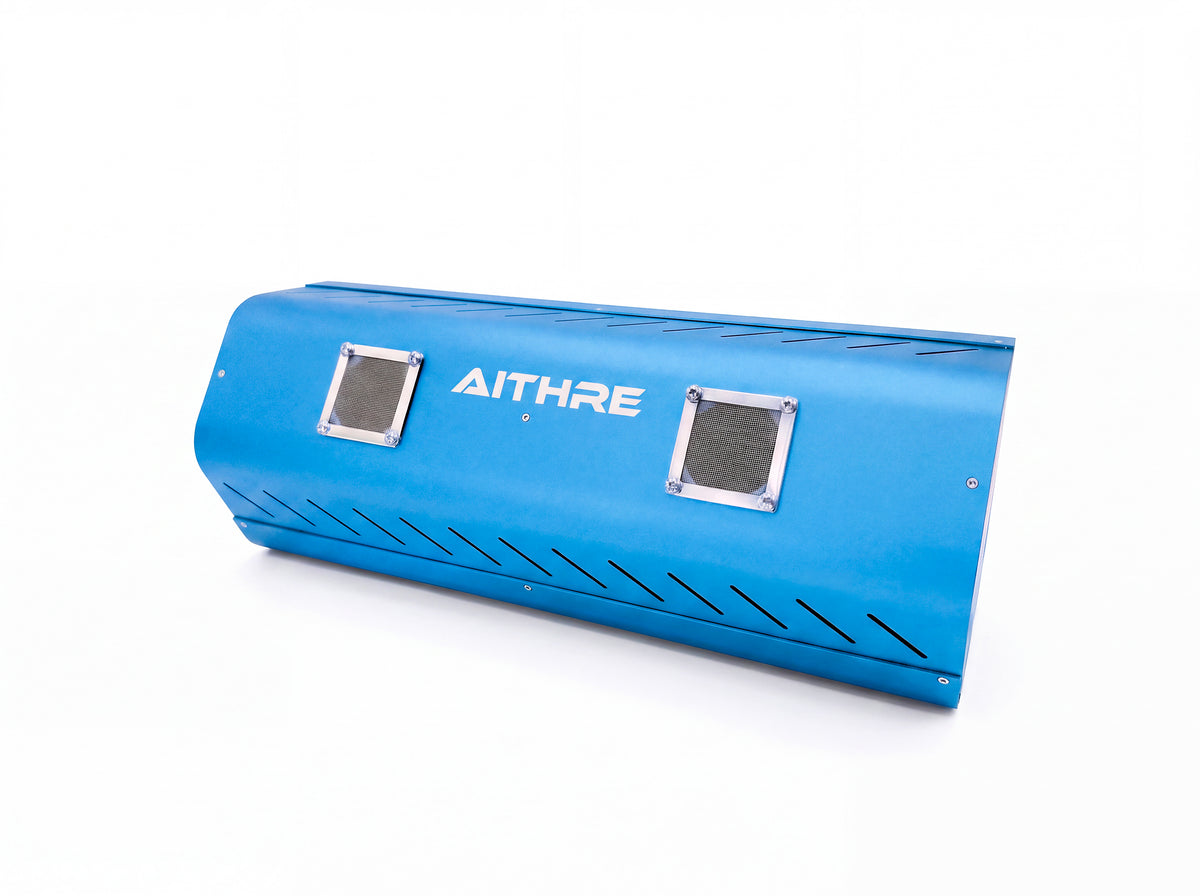

With a small footprint of 8 inches diameter x 19 inches length and a weight of just 11.5 lbs., the Aithre Turbo O2i HEX will free up space and expand useful load as compared to traditional legacy bottle systems.

INSTALLED

The Aithre Turbo features panel-mounted cannula plugs, remote push-button activation, and hidden built-in plumbing.

Two strap mounts are provided for removably securing the Turbo O2i HEX to a wall, floor, or supporting member. While the Turbo requires intake access to fresh air through its side ports, with center of gravity impact minimized, there are many options for mounting: tail-cone, nose-cone (for pusher or twin-engine aircraft), or the baggage compartment.

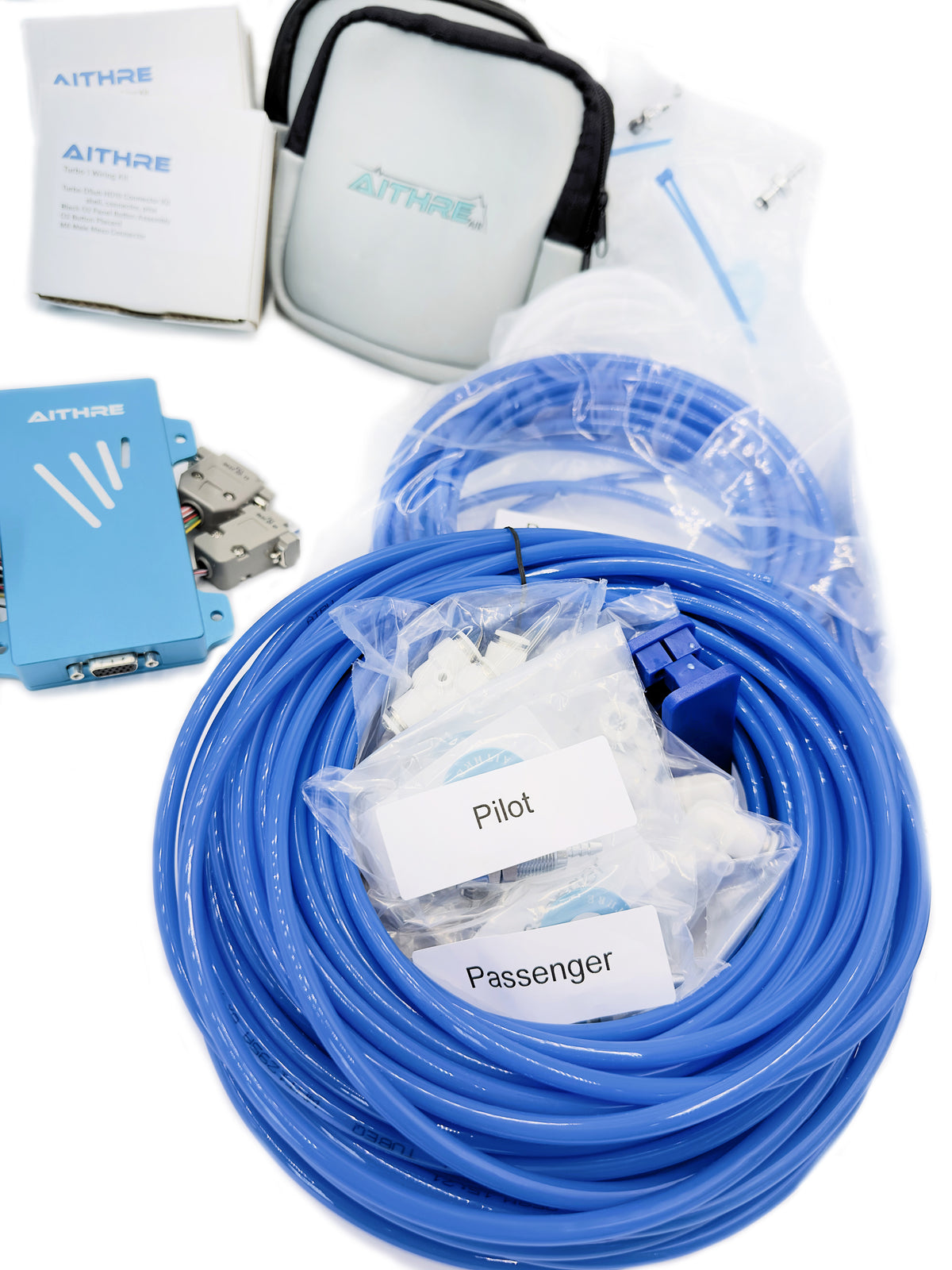

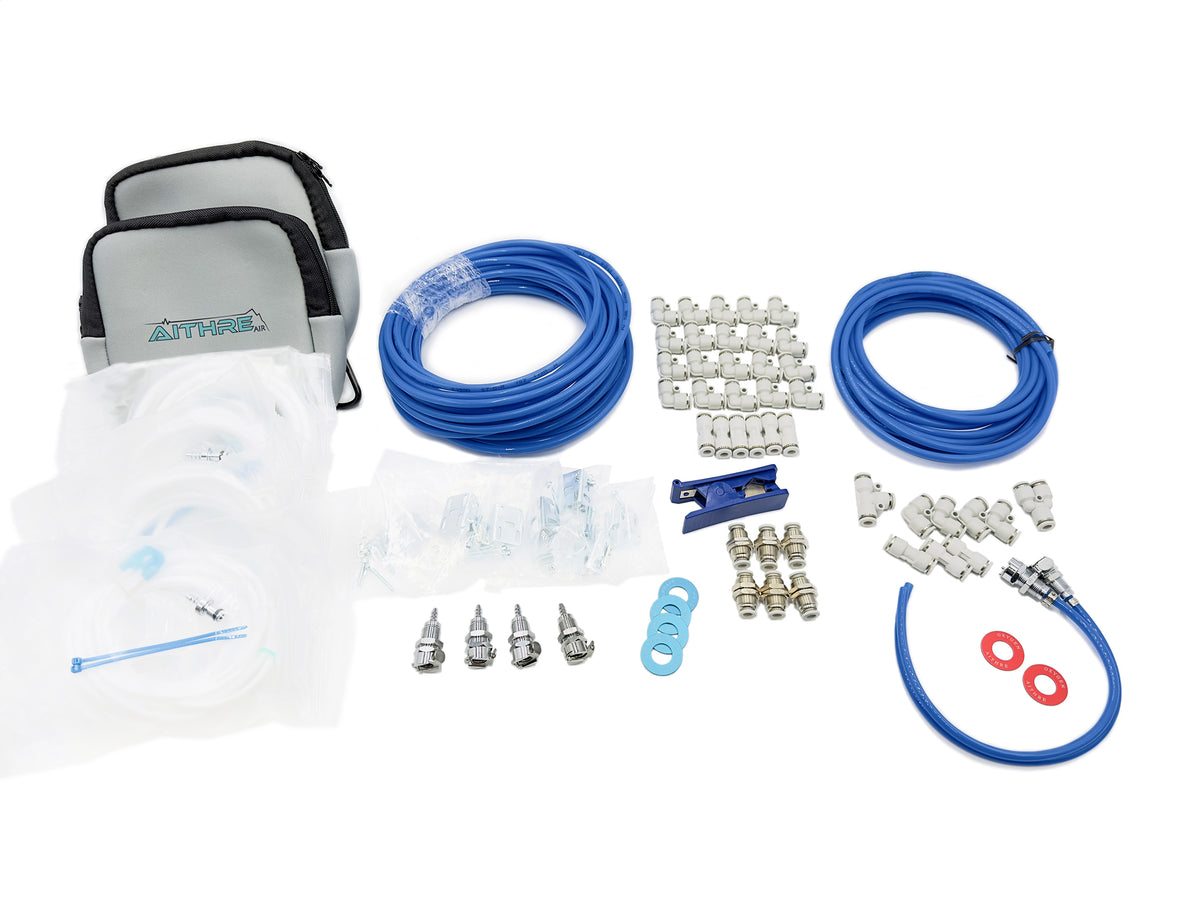

A complete plumbing kit is provided with tubing, elbows, branches, panel cannula plugs, and placards. Installation is straightforward: the provided plumbing is routed and secured from the Turbo to each of the stations and two backlit O2 buttons are electrically routed to the panel.

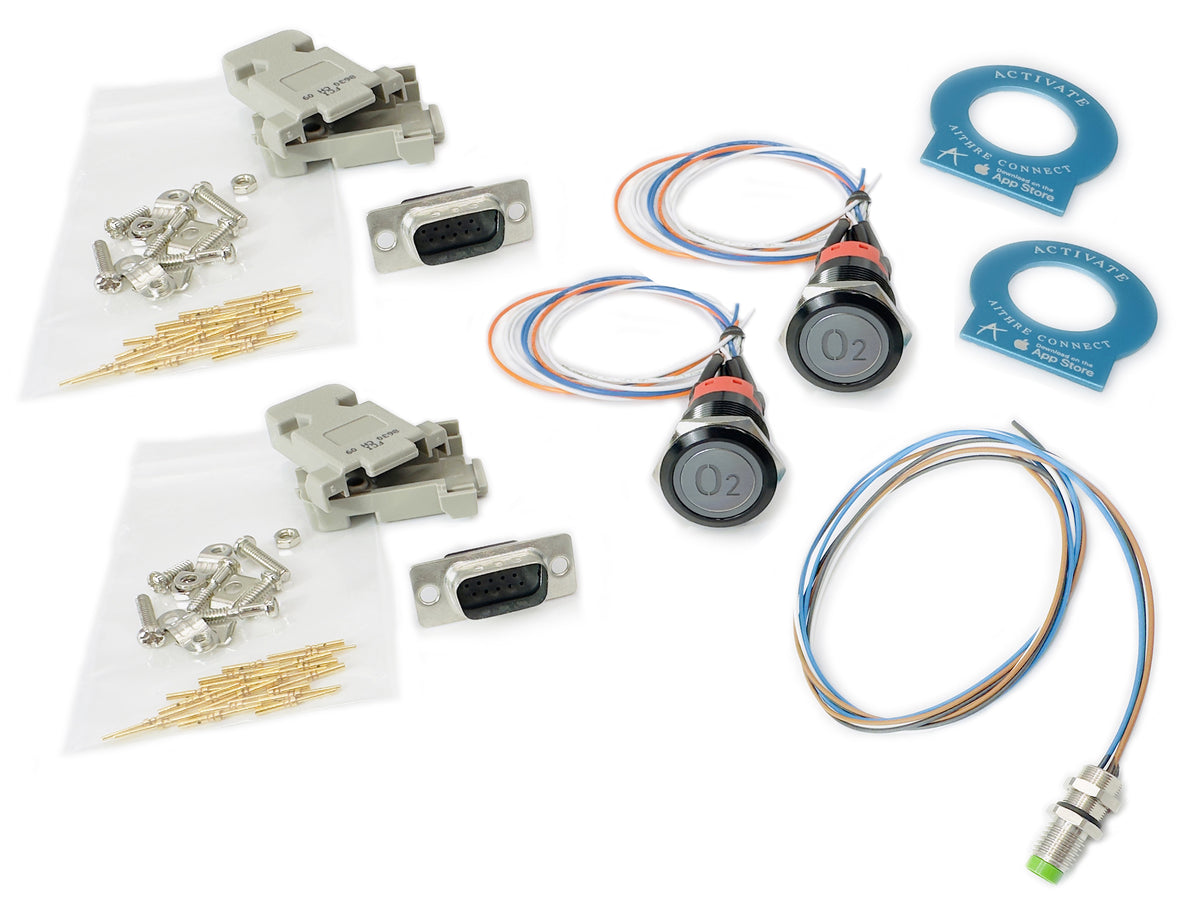

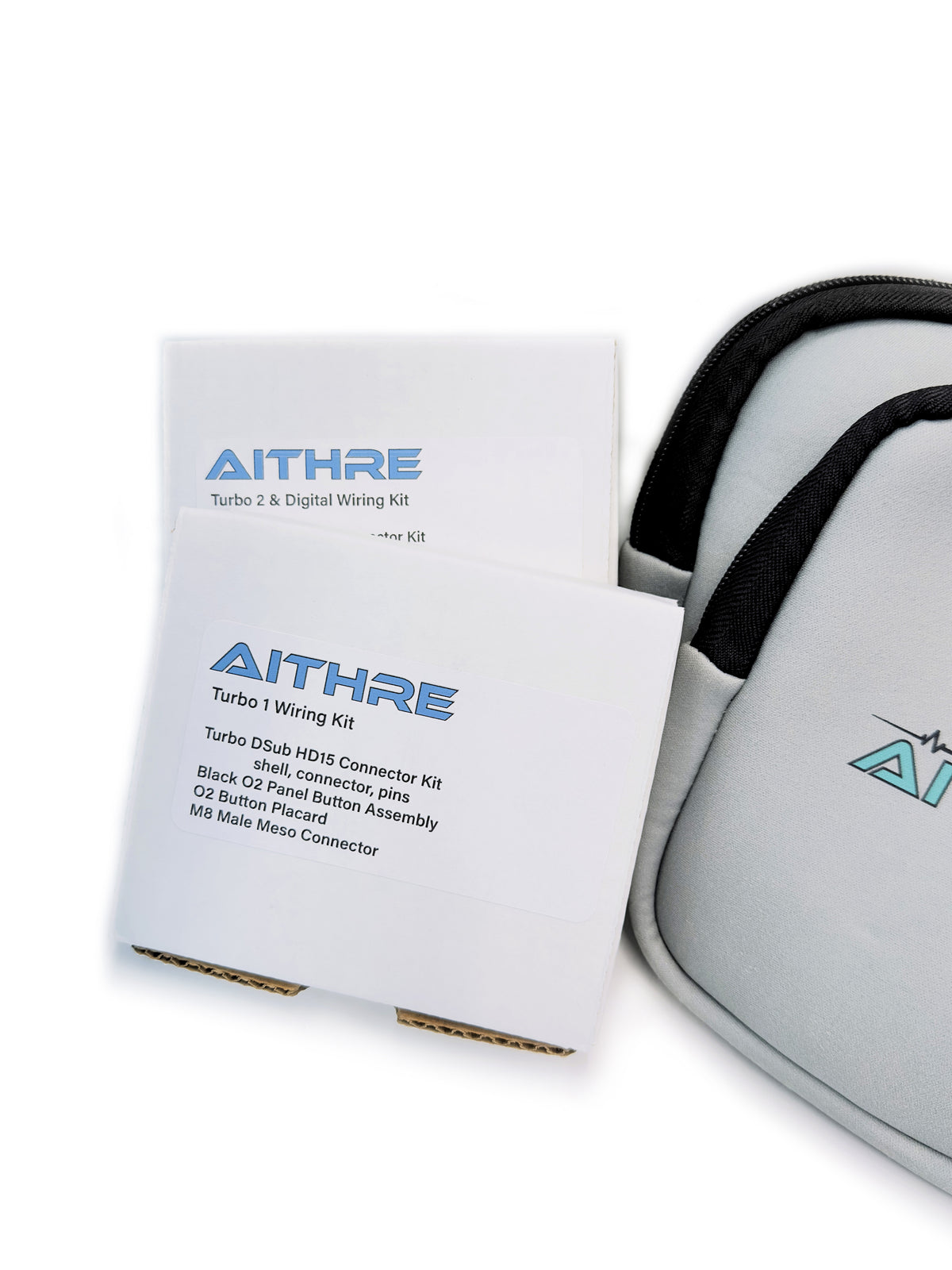

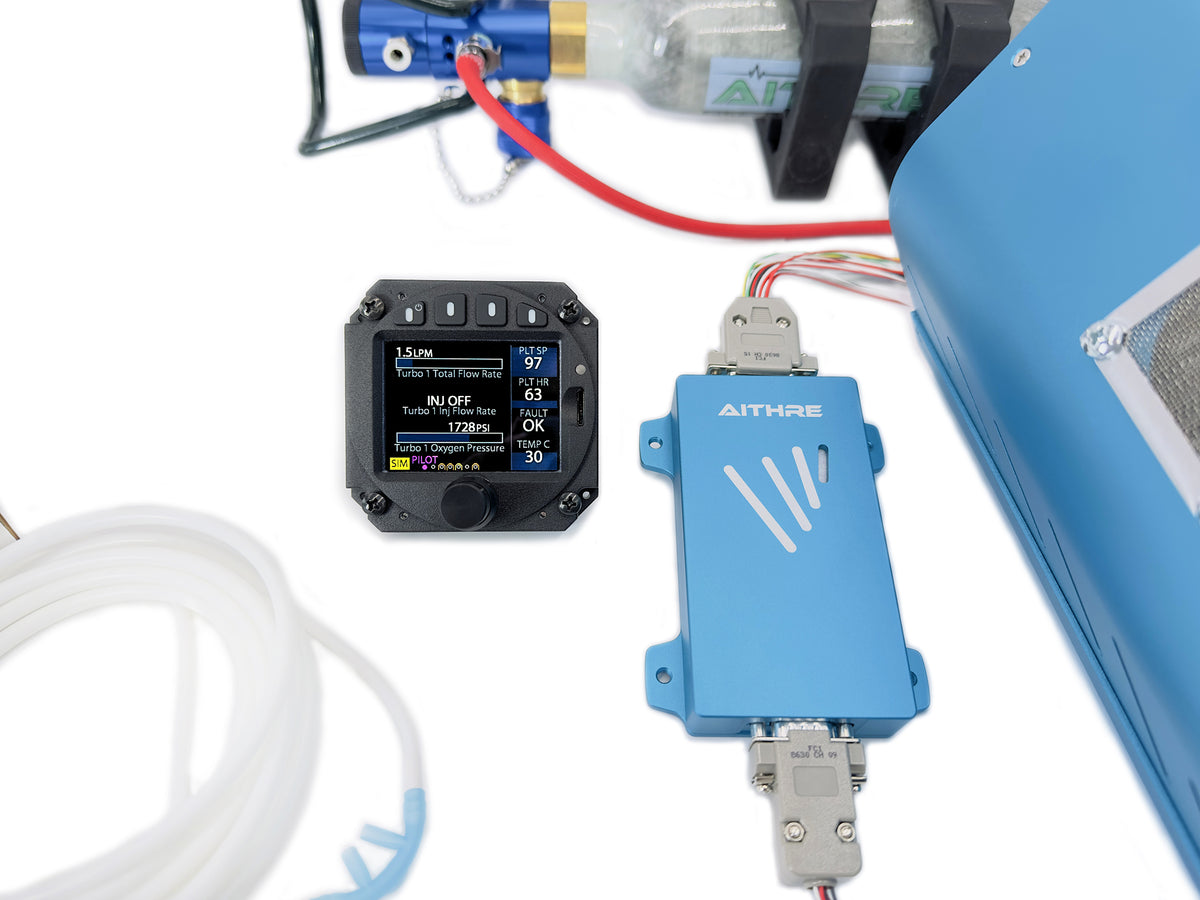

Two standard DSUB HD15 connectors consolidates all the power, data, button, and fault wiring into one compact and secure connection for each concentrator system within the Turbo O2i HEX. The DSUB connector kits are included with the system, including the shells, male connectors, and a set of male HD crimp pins.

AUTOMATIC DIGITAL FLOW CONTROL OF CONCENTRATED OXYGEN

The Turbo system features automatic digital flow control of concentrated oxygen. Medical concentrators often require user control of an analog flow meter to adjust and set the flow rate and the oxygen concentration. With the Turbo, the flow is set and managed automatically to help support flight safety with predictable and optimized oxygen generation. Simply push the oxygen button and the oxygen is provided to 14.-2.8 LPM at altitudes up to 18k MSL and >93% concentration.  Each of the independent concentrator systems within the HEX are independently controllable.

HEALTHVIEW AND AHV AVIONICS

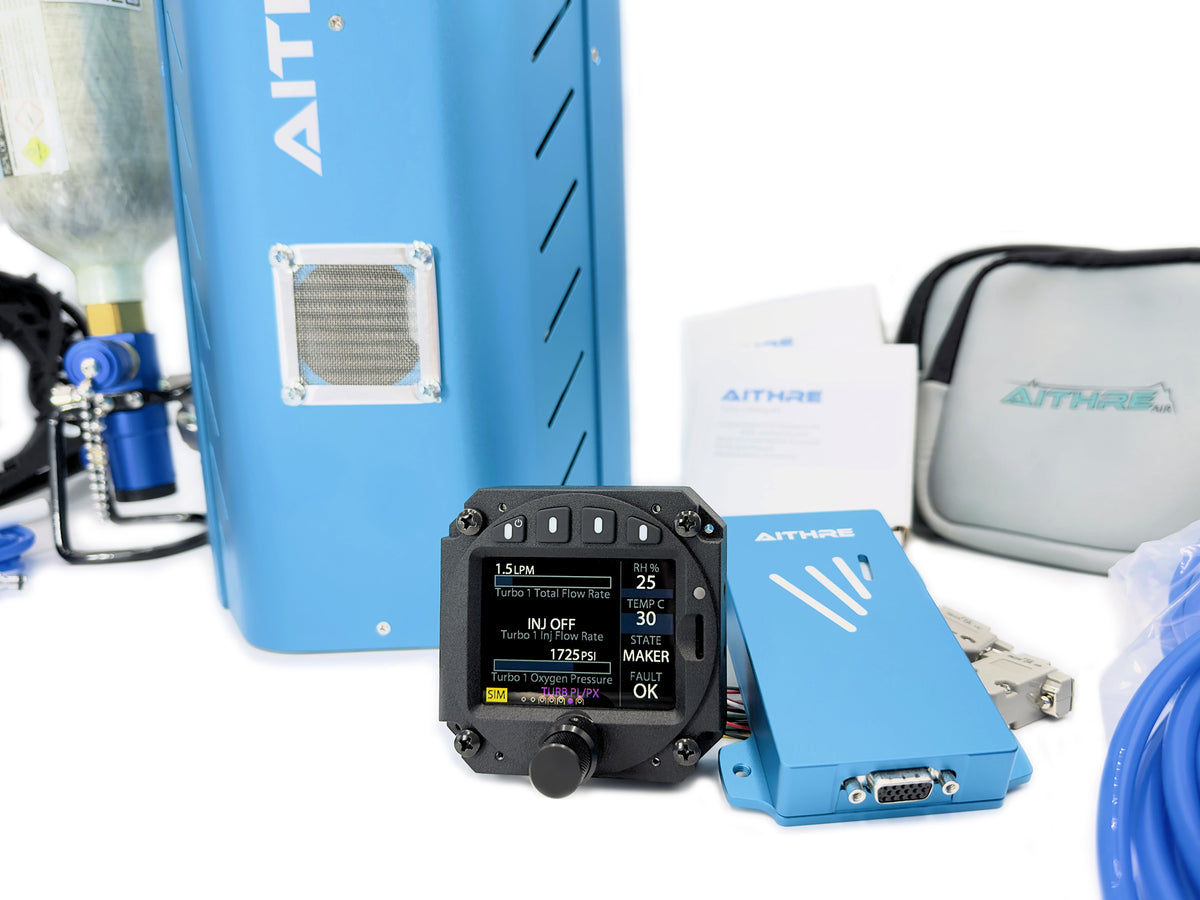

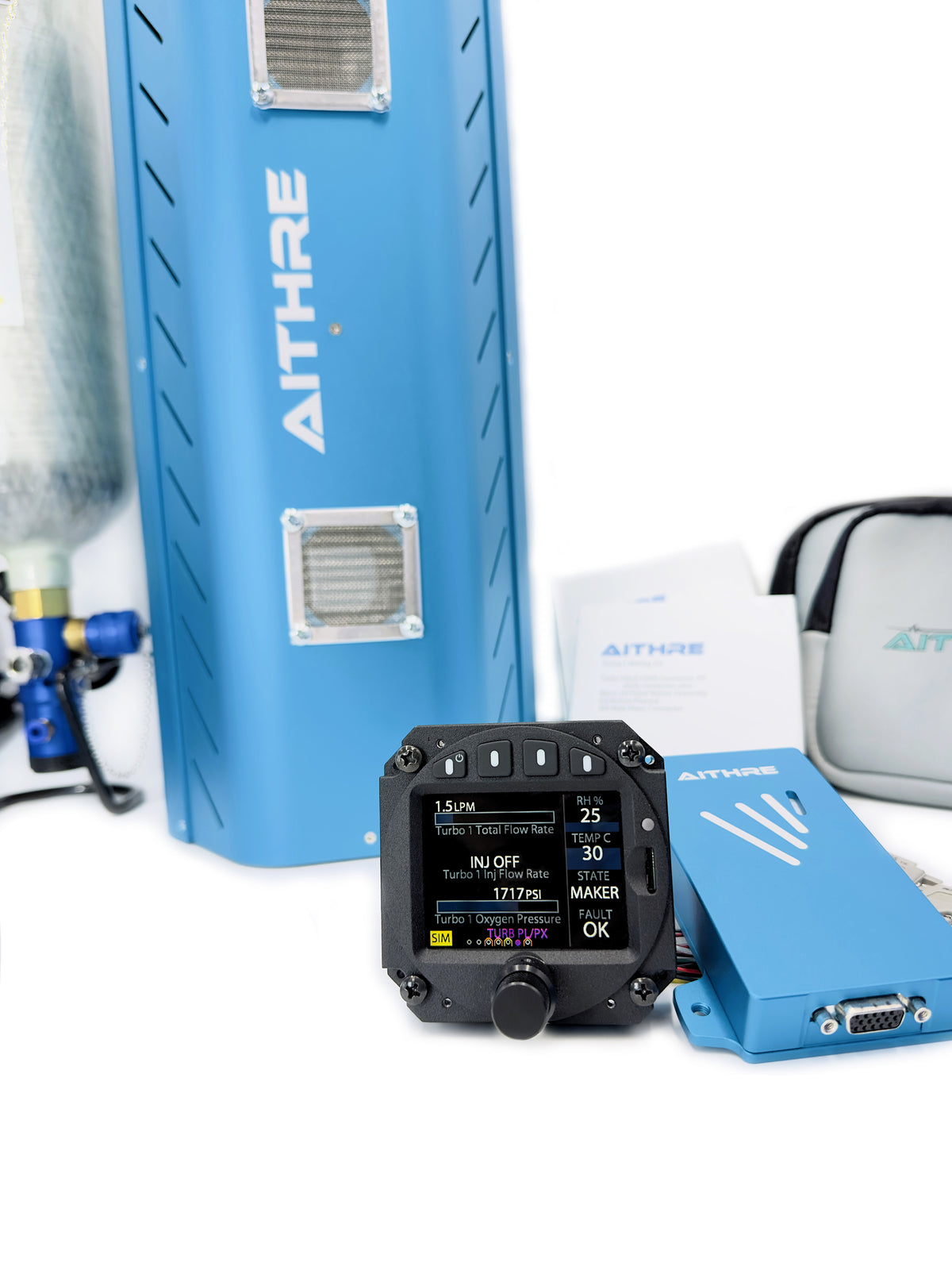

The HealthView is the first dedicated avionics system that both controls oxygen delivery and outputs health information, including gauges for blood oxygen, heart rate, flow rate, cabin pressure, cabin temperature, carbon monoxide, and oxygen bottle pressure. The HealthView is the behind-the-panel data bridge and the AHV is the avionics display.

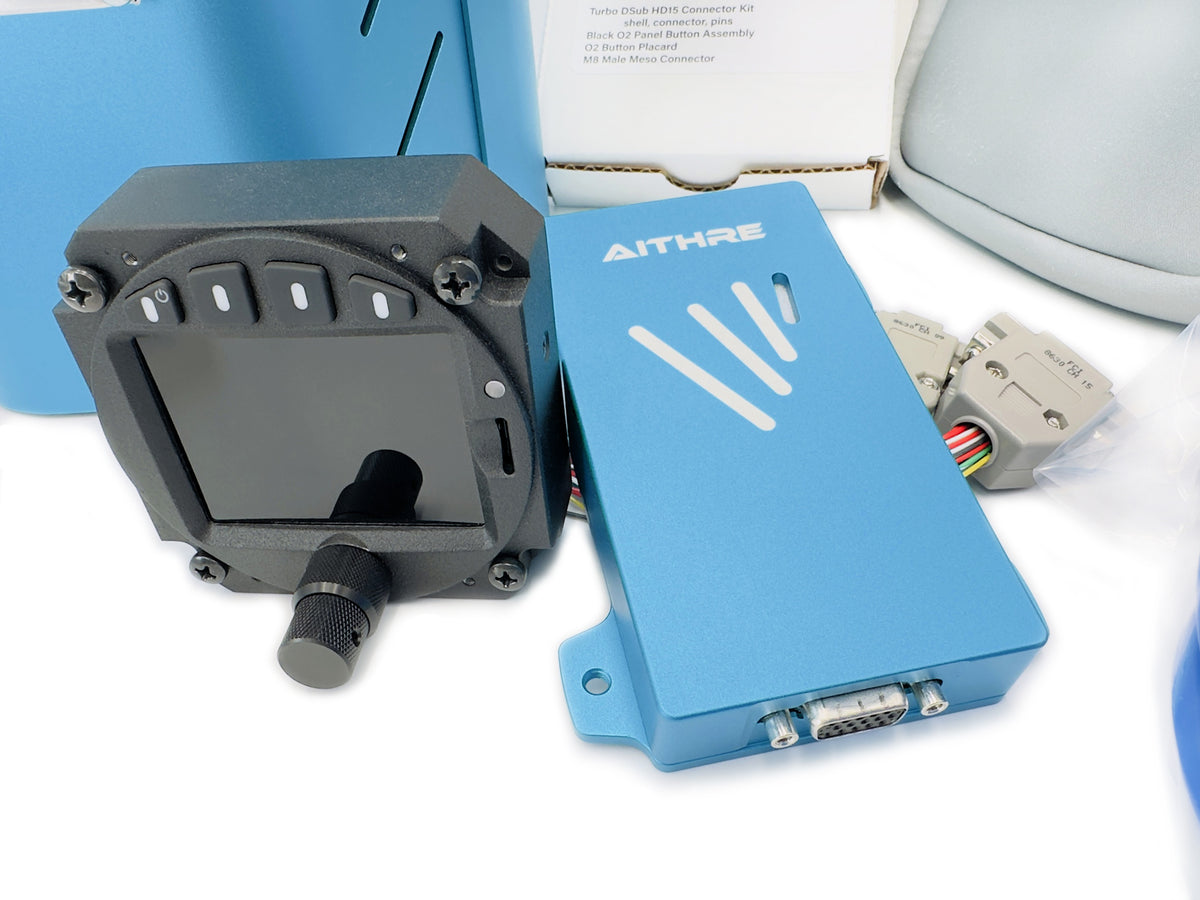

The HealthView III is standard with the Turbo O2i HEX and includes an embedded Shield carbon monoxide detector, hardwired Illyrian connections for wired blood oxygen monitoring, and improved industry standard DSUB connectors.

The AHV avionics displays provide for user facing data output of biometric health information and user control of the oxygen. The AHV is a multi-function instrument that is low profile with high visibility graphics and tactile input controls. The AHV displays are available for standard 2 1/4" or 3 1/8" diameter cutouts or using a camera-style 1/4 stud mount for off-panel mounting.

The AHV avionics displays feature over 60 customizable health fields across 9 pages control of oxygen dosing. Declutter functions enable only the pages and health fields that are appropriate for the number of passengers and Aithre devices detected.

The AHV avionics displays are modular and can be optionally expanded with the Air Avionics AC-1 model transceiver for dual HealthView and COM radio functionality.

ALTUS WIRELESS PRESSURE GAUGE

The Turbo system includes the Aithre Altus Meso tank pressure gauge, which allows for monitoring the oxygen pressure remaining while the bottle is out of sight. Readings from 0-2500 PSI are transmitted to the HealthView and the Aithre Connect iOS app to supplement the analog pressure gauge.

ILLYRIAN OXIMETERS

The Turbo system includes two Illyrian II oximeters for pilot and co-pilot. The Illyrian wearable oximeter provides continuous real-time SPO2 and heart rate information to the HealthView and to the Aithre Connect iOS app. Advanced features include cabin altitude monitoring with haptic vibration feedback.

AITHRE BOOM CANNULAS

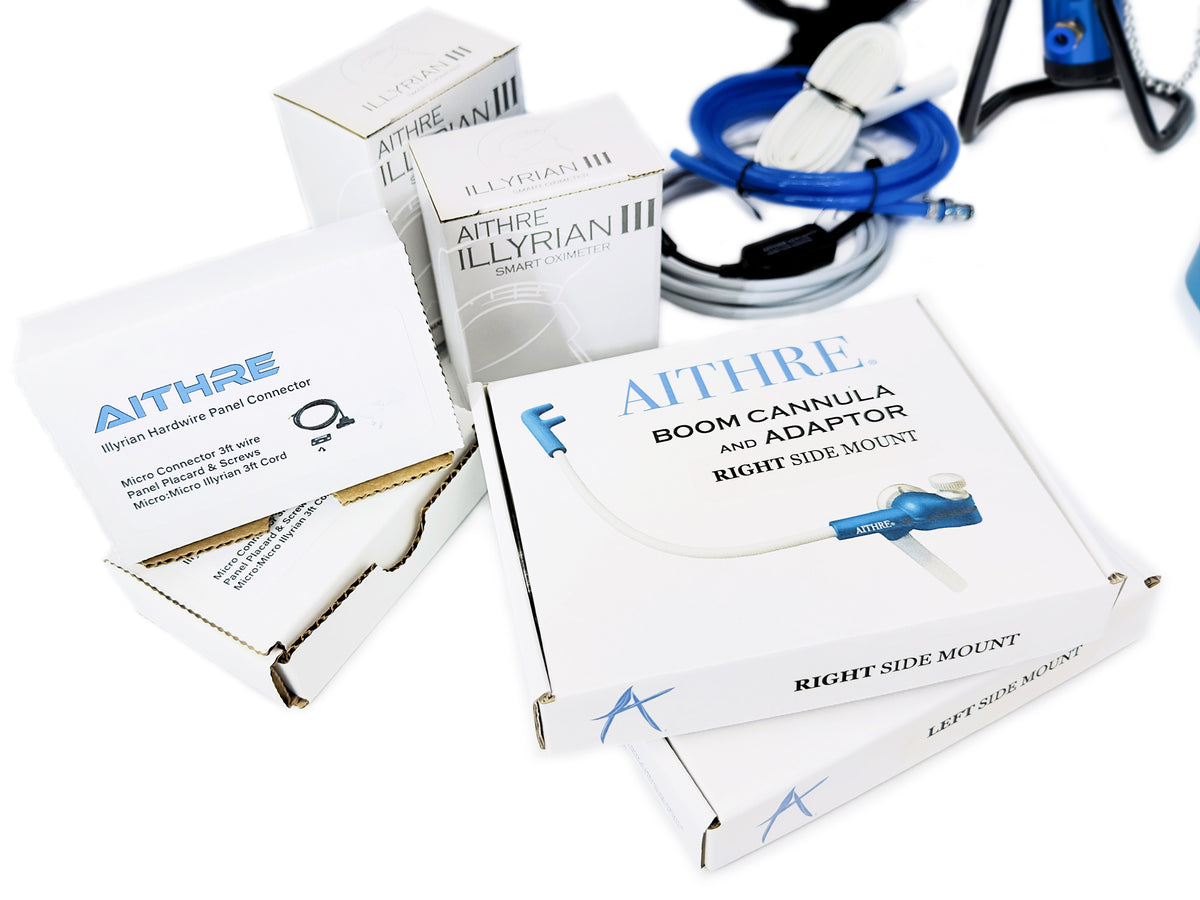

While the Turbo system includes two silicone cannulas, the system additionally includes two Aithre Boom Cannulas to make oxygen delivery safer and more comfortable. The Boom Cannula features a low profile aluminum anodized swivel adapter and an articulating boom arm, making oxygen delivery as easy and convenient as talking on the microphone. When not in use, the Boom Arm can be pushed or swiveled up and out of the way and can be easily recharged with a new nasal arm after extended periods of use.

AITHRE SHIELD CARBON MONOXIDE DETECTOR

No oxygen system is complete without the a carbon monoxide detector, so the Turbo system includes the Shield carbon monoxide detector integrated in the HealthView III Data Bridge. The Shield CO detectors offer superior 10 year no recalibration service with sensitivity below 10 ppm and responsiveness of under 60 seconds.

CONCENTRATION MONITORING

The oxygen concentration produced by the Aithre Turbo is >93% when new and expected to last for 2000 hours or 2 years or when oxygen concentration is <80%, whichever comes first. There is a decrease of approximately 5-10% per year in concentration output under normal conditions with factors such as infrequent use, dusty environments, and high humidity levels accelerating the decline. There are two primary methods to verify the concentration and ensure that the Turbo is operating correctly, using the Aithre Illyrian II wearable oximeter and using a portable oxygen concentration tester.

Continuously measured blood oxygen provides a direct indication of the sufficiency of breathing oxygen during flight. The Aithre Illyrian II is the only haptic wearable that provides a continuous readout of blood oxygen to modern avionics, the Aithre HealthView, the Aithre Connect iOS app, and via the native haptic vibratory alerts. It is the best way to monitor your blood oxygen and the verify the flow, concentration, and operation of the Turbo.

Additionally, a portable oxygen concentration tester can be used on the ground prior to flight to test the flow and purity of oxygen generated using the Turbo. The test is simple and takes just seconds to perform using an Aithre provided oxygen concentration tester.

The portable oxygen concentration tester is not included and must be purchased separately.

MAINTENANCE

Nothing is airborne for free, but operation of the Turbo is very cost-effective as compared to FBO transfilling costs. With the Aithre Turbo, there is a sieve bed replacement that will need to occur every 2 years or 2000 hours of usage or when concentration is <80% to ensure high purity oxygen generation. There are two options for the maintenance, including either a mail-in service or a factory refurbished exchange with zero down time. Information on the same is accessible from our website main menu or via the separate maintenance product listings.

SAFETY

There are a number of significant safety benefits of the Turbo.

Notably, the Aithre Turbo does not itself store any pure oxygen so the risks associated with carrying, transporting, and filling pressurized oxygen vessels can be reduced or eliminated.

Additionally, the Aithre Turbo does not include any Lithium battery. While portable oxygen concentrators designed for medical purposes rely upon a Lithium battery, this is unacceptable for aviation environments due to the combination of heat and battery fire risk. The Turbo relies instead on clean continuous power directly from the aircraft alternator, ship battery, and any available backup ship battery.

Other safety features include high temperature Tefzel internal wiring, six high speed cooling fans, over temperature monitoring with over temperature shutdown, and capacitive electrical noise reduction.

FEATURES:

• Two independent internal concentrator systems
• Up to 18k MSL for two people and up to 15k MSL for four people (Illyrian II SPO2% determine personal altitude limits)
• Normal service life of 2000 hours or 2 years at 1.1-1.4 LPM at >80% O2, each concentrator system
• Injected flow 0 LPM - 2.5 LPM, each concentrator system
• 12-14V or 24-28V, 80 Watts (6 Amps at 14V), each concentrator system
• 11.5 lbs
• 8 inches diameter x 19 inches length

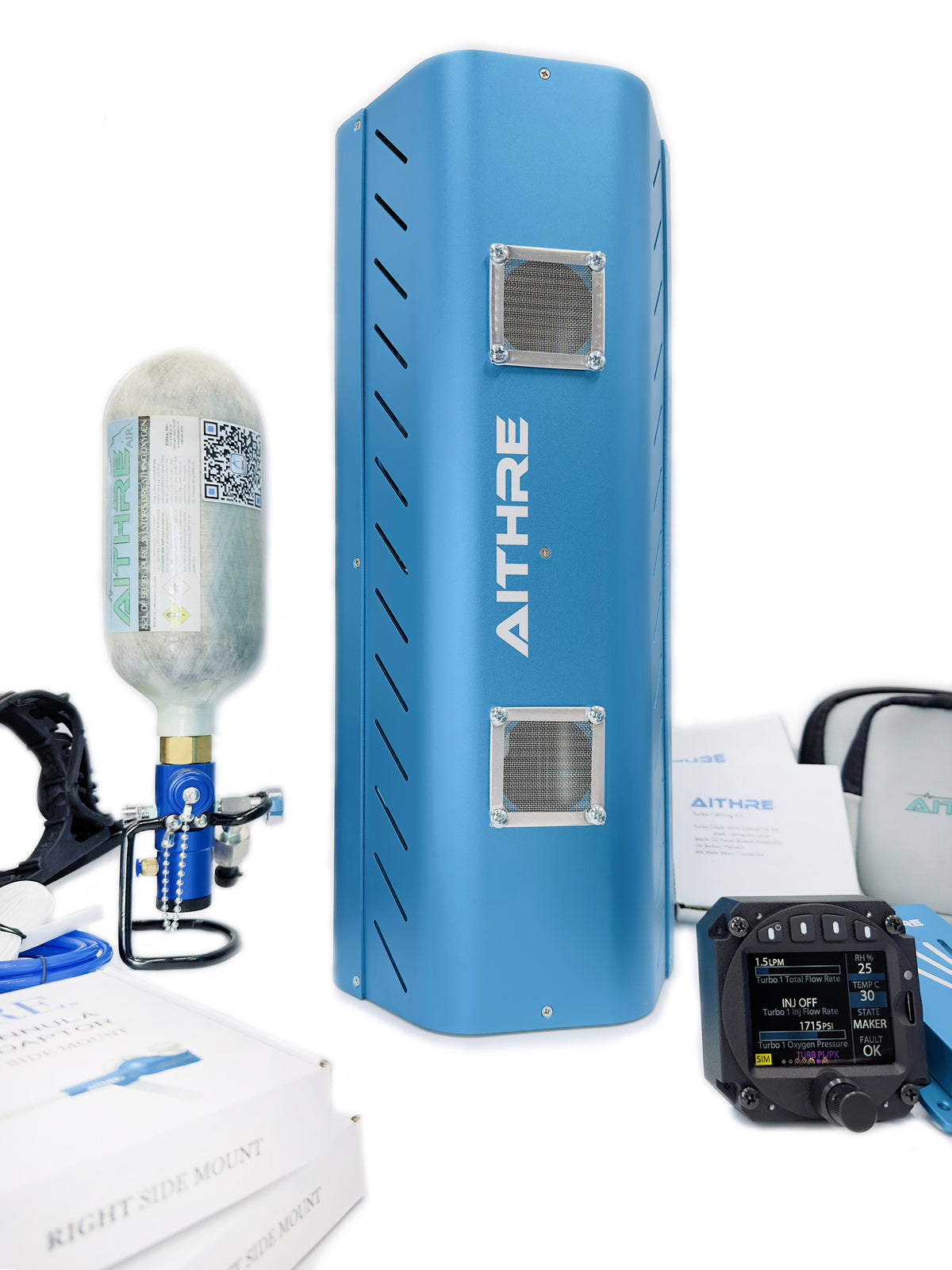

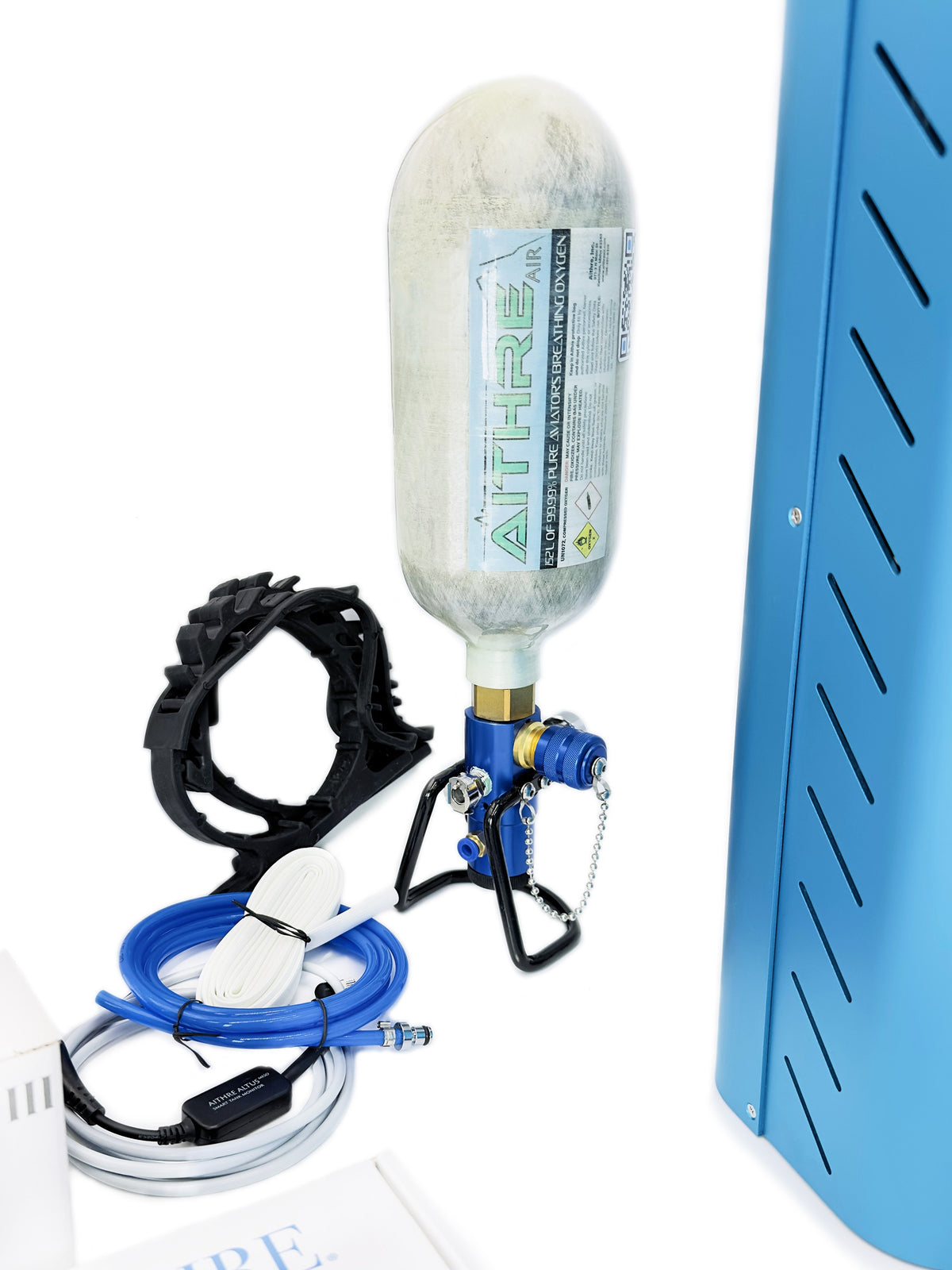

• 152L bottle dimensions: 4 inches x 13.5 inches overall and 4 lbs. 9 oz. filled
• Push button activation, each concentrator system
• Integrated flow, pressure altitude, humidity, and temperature monitoring
• Six dual ball bearing cooling fans
• Over-temperature protection and fault outputs
• Aithre Connect iOS included and compatible
• HealthView III included and compatible

INCLUDED

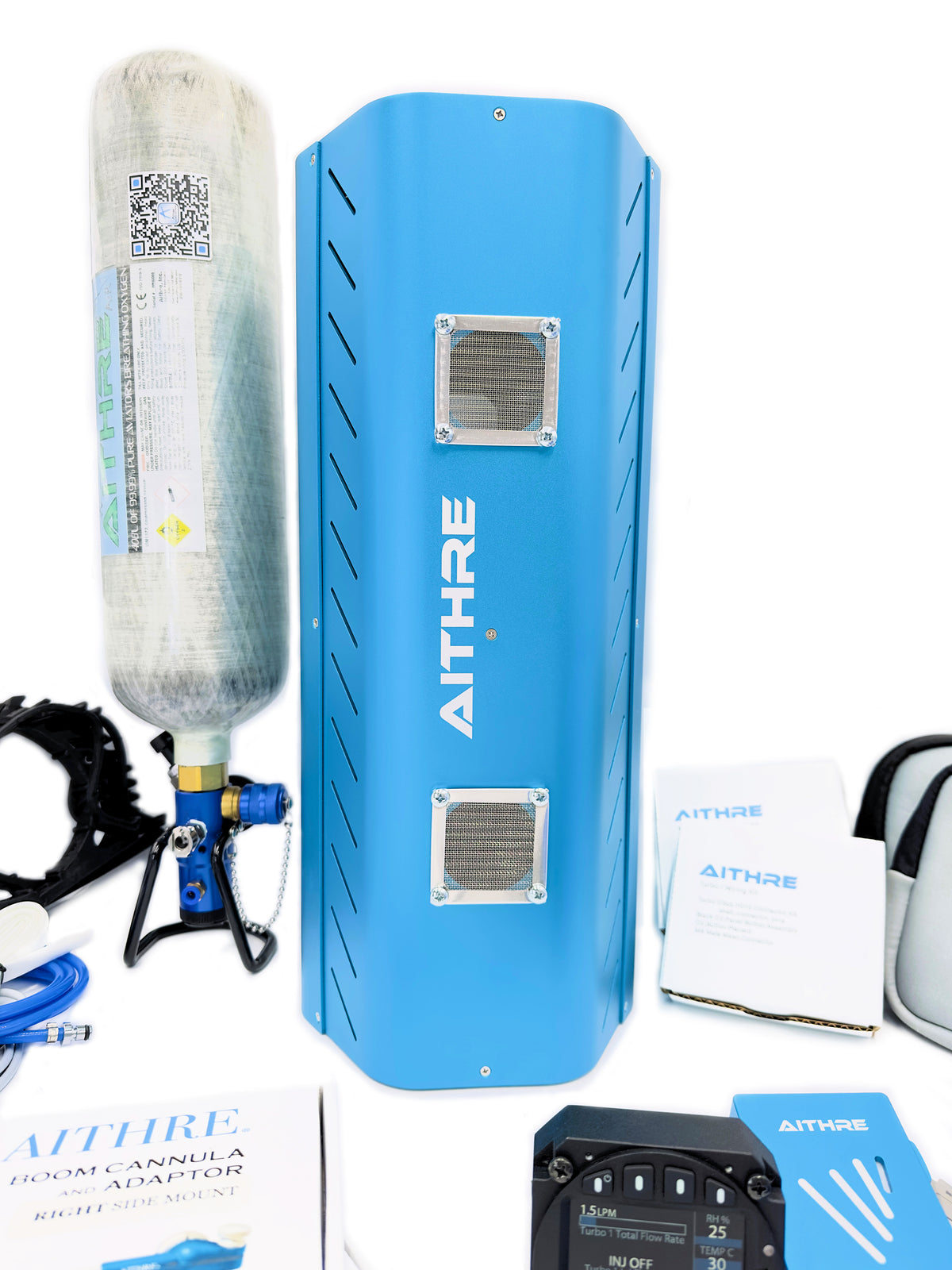

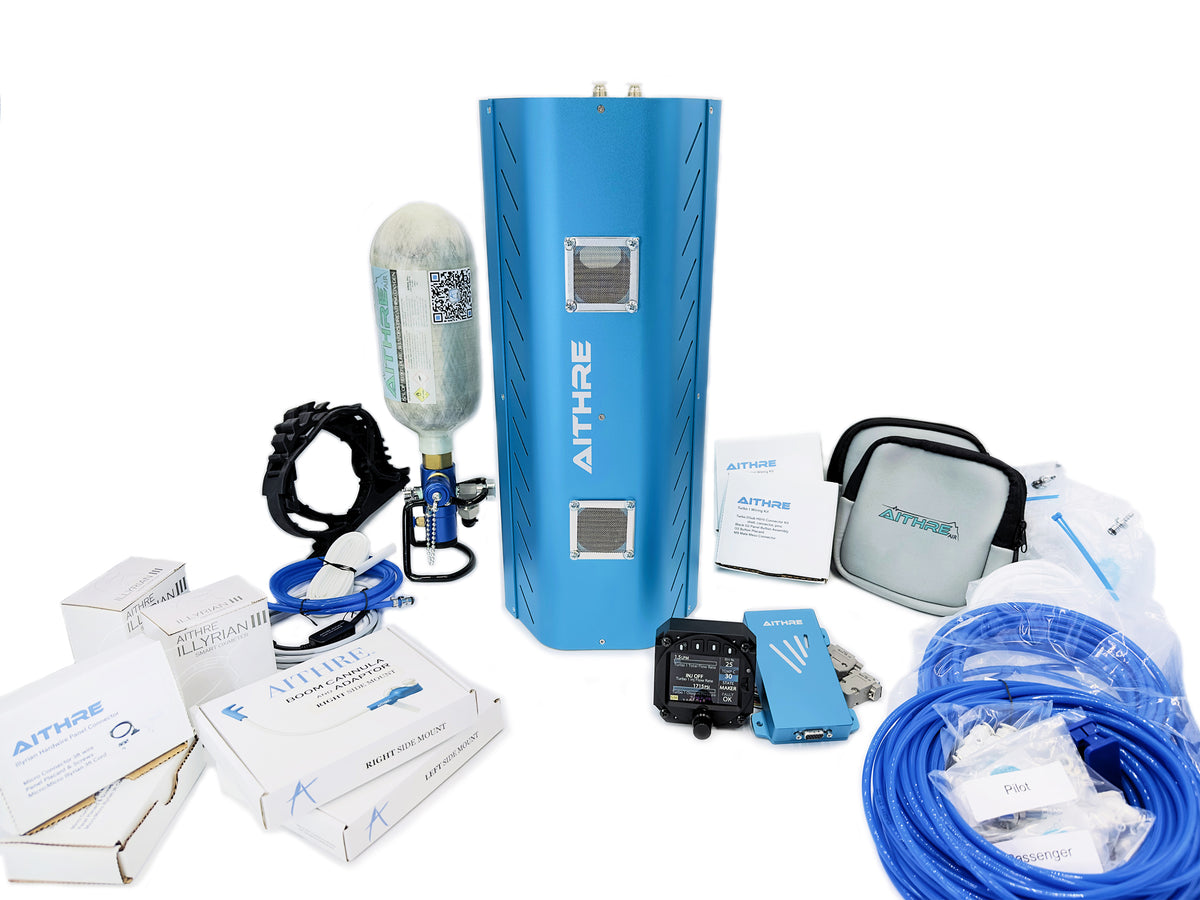

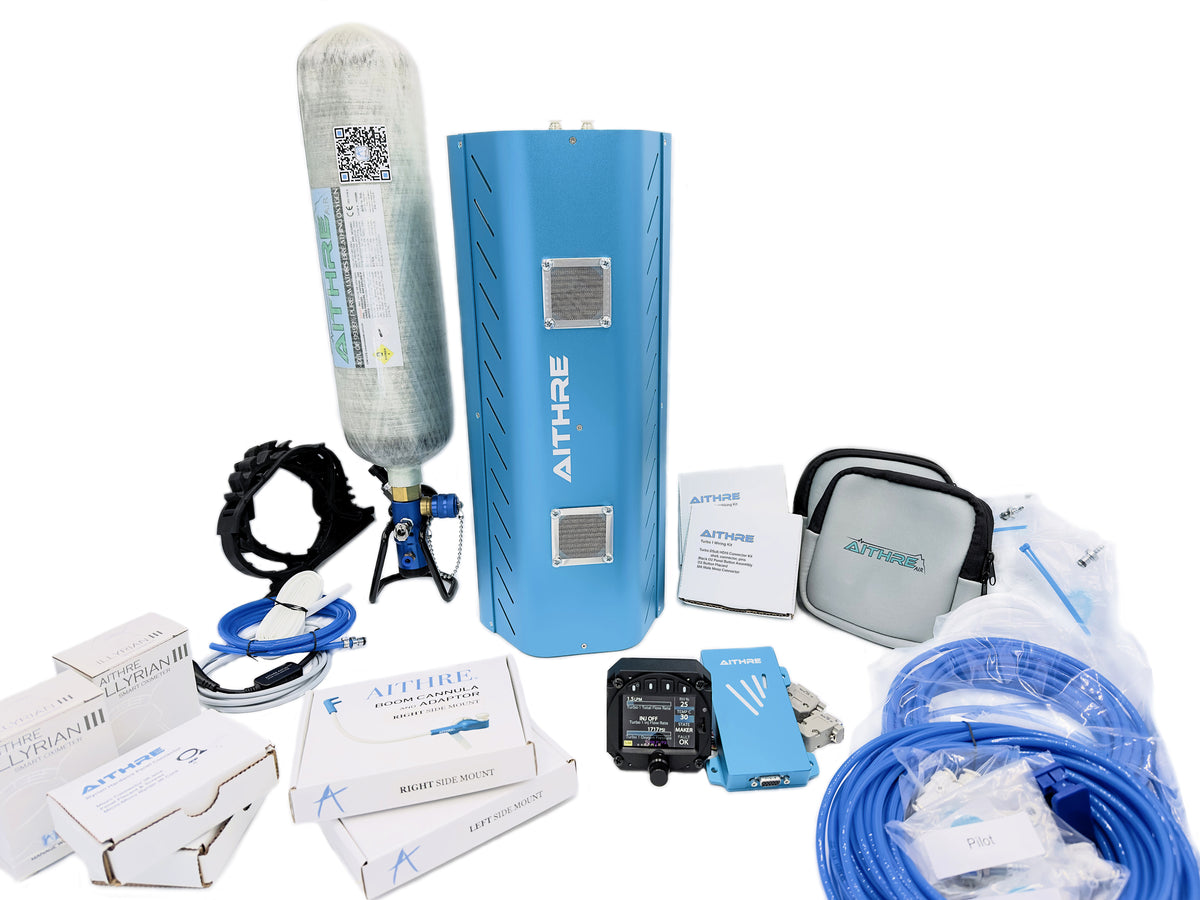

• Aithre Turbo O2i HEX including two independent concentrator systems
• Rubber Mounting Clamp (2)
• Carbon fiber composite oxygen bottle with continuous flow backup and mounting clamps
• HealthView III and AHV including Shield carbon monoxide technology
• Aithre silicone cannulas (4)
• Illyrian III Wearable Haptic Oximeter (2)
• Illyrian Hardwired Connector (2)
• Aithre Boom Cannula (2)

• Plumbing kit, fittings, cannula ports, placards, including backup kit

HEALTHVIEW III AND AHV SPECIFICATIONS

• Voltage: 12-30V
• 0.04 A Max Current

• HealthView III Data Bridge Size: Overall 120mm x 23mm x 64mm - mounting flanges extend out 12 mm
• AHV-57 Size: 2.25" Cutout with overall 61.5mm x 61.5mm x 26.3mm (2.42″ x 2.42″ x 1.03″)
• AHV-11 Size: Overall 100.5 x 50.5mm x 22mm (3.95″ x 1.98″ x 0.8″) - compatible with 1/4" stud - 7mm ball mount systems
• AHV-80 Size: 3.125" Cutout with overall 83mm x 83mm x 26mm (3.26″ x 3.26″ x 1.01″)
• Combined Weight: ~300 grams or 11 ounces
• AHV viewing angle: 45°
• D-Sub Connector Kits Included

BOTTLE SPECIFICATIONS

• Carbon fiber & aluminum construction
• 4 inches x 13.5 inches overall
• 4 lbs. 9 oz. (filled)
• 152 L oxygen volume @ 2000 PSI (1.12 L liquid volume)
• 2000 PSI working pressure
• 3000 PSI maximum rating
• 15 year bottle service life (retesting every 5 years)

RECOMMENDED COMPANION SAFETY PRODUCTS

• Aithre Turbo Oxygen Concentration Tester

BOTTLE SHIPPED EMPTY

• No oxygen is contained in the bottle when shipped

BOTTLE REGULATION NOTICES

• CE Certificate: Bottle certified CE 1282 and inspected/tested to ISO 11119-3 international standards
• NOT DOT approved: Carrier shipment in the U.S. requires the bottle to be empty with no pressure and no compressed oxygen
• Personal portable use only - not approved for commercial use
• Not approved for commercial flight
• Not FDA approved for medical: Do not use to treat or prevent a disease or for any medical purpose.

WARNINGS AND LIMITATIONS

• The Turbo is not authorized for operations above 15,000 MSL except as provided in the Aithre High Altitude Addendum.
• Flight above 15,000 MSL in unpressurized aircraft can be extremely dangerous. Risks include: Hypoxia, loss of consciousness, altitude sickness, and death.
• Safe use of the Turbo system requires compliance with the Aithre HealthView instructions, the Aithre High Altitude Addendum, and the checklists provided therein.
• Use the Aithre Turbo only with Aithre-approved portable oxygen bottles and regulators to ensure correct operation and to prevent damage to the system.

Review additional supporting material here.
