The AVI 1-place oxygen pulse-demand system is a portable device for use in experimental aircraft, certified Part 23 aircraft, and glider aircraft.

The AVI is the first smart oxygen system that is integrated with your iOS device and the Aithre suite of health technology products to deliver smart pulsed oxygen. You get a pulsed delivery system that factors pressure altitude, respiration rate, and custom user parameters to extend oxygen duration by more than 4X. This lightweight system offers incredible endurance, which time can be extended more using the Aithre Illyrian oximeter.

OXYGEN DELIVERY

Simply activate the system with the provided 5V USB-A cord and breathe while monitoring the flow and delivery in the iOS Aithre Connect iOS app. The AVI adjusts dosage automatically based on pressure altitude and provides for further user customization.

The pulse system is the first ever to detect breathing based on flow instead of pressure. This technology provides enhanced inhalation detection combined with real-time flow rate detection and accurate respiration rate feedback.

To provide smoother oxygen delivery, the AVI delivers each pulse of oxygen as a series of micro bursts with each inhalation. The micro bursts start immediately upon inhalation and extend over the first critical portion of the inhalation cycle. The number and spacing of the microbursts are adjusted in real-time and customized for each inhalation based on respiration length and pressure altitude.

ALTUS WIRELESS PRESSURE GAUGE

The AVI includes the Aithre Altus Meso bottle pressure gauge, which allows for oxygen bottle PSI monitoring on the iOS Aithre Connect app while the bottle is out of reach.

CHOICE OF BOTTLE OR STANDALONE

The AVI is usable with any Aithre composite oxygen bottle, Mountain High aluminum or Kevlar bottle (purchased separately), or can be used standalone with existing built-in aircraft systems using a MH-Aithre inline step down pressure regulator.

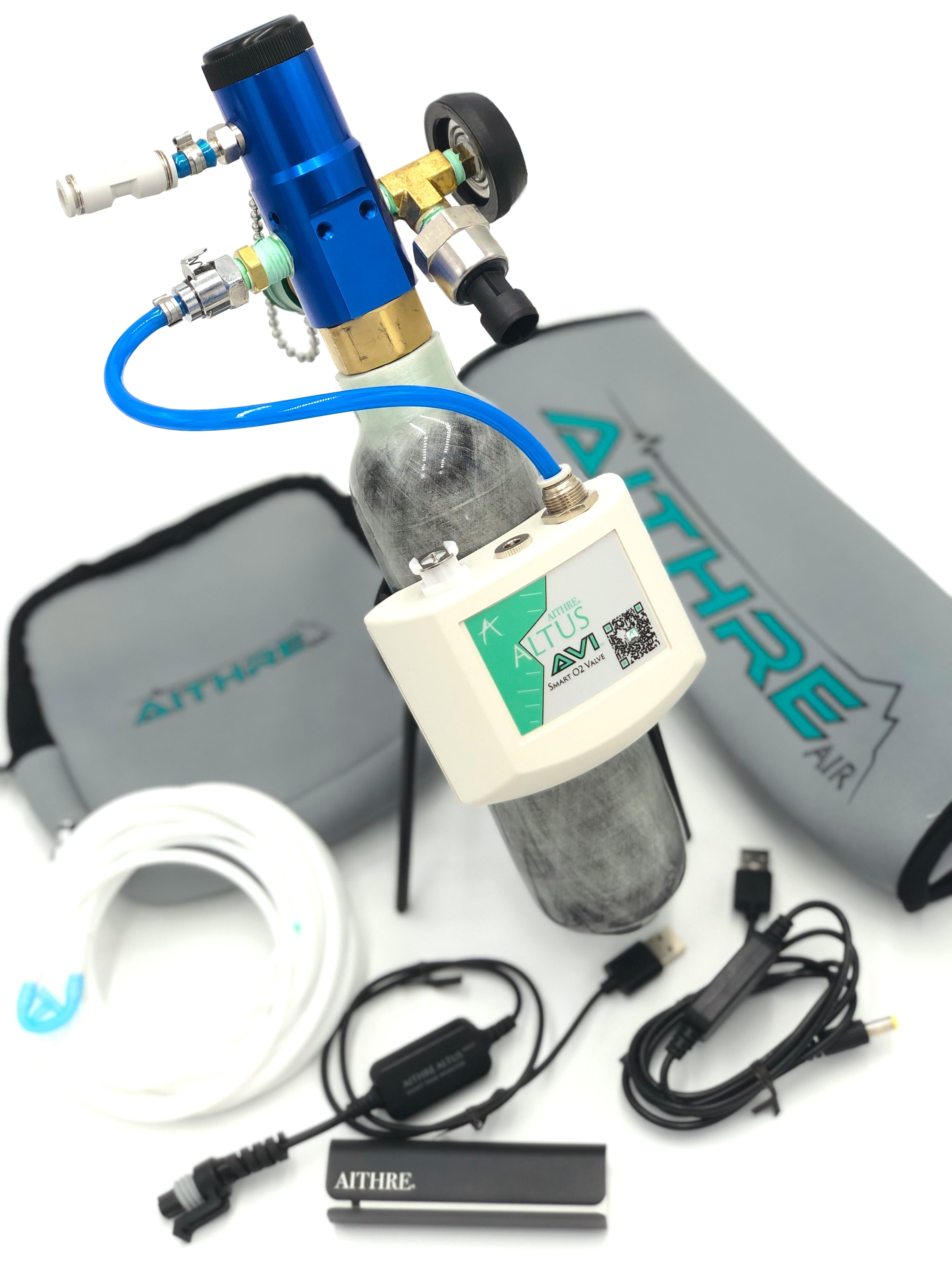

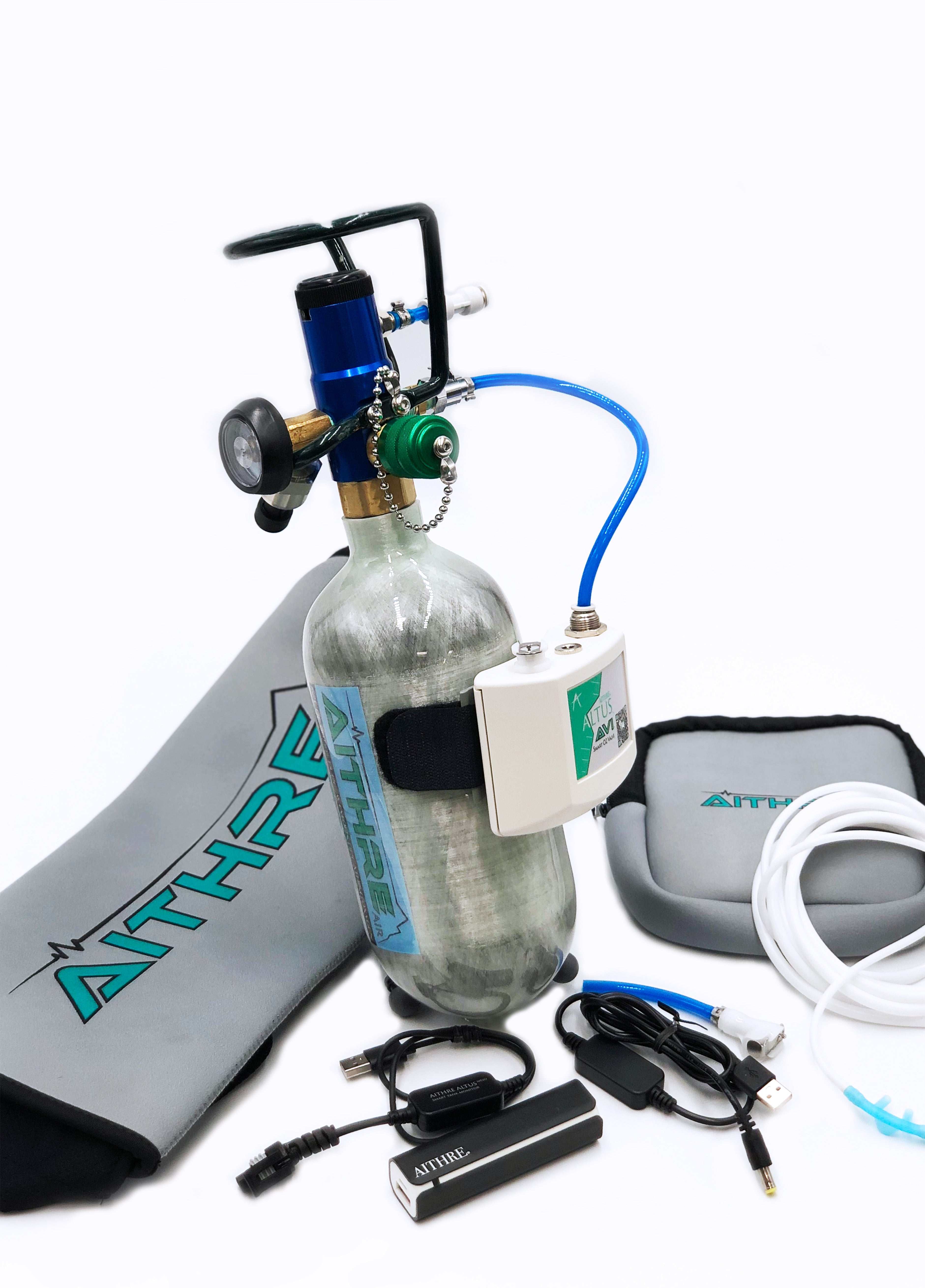

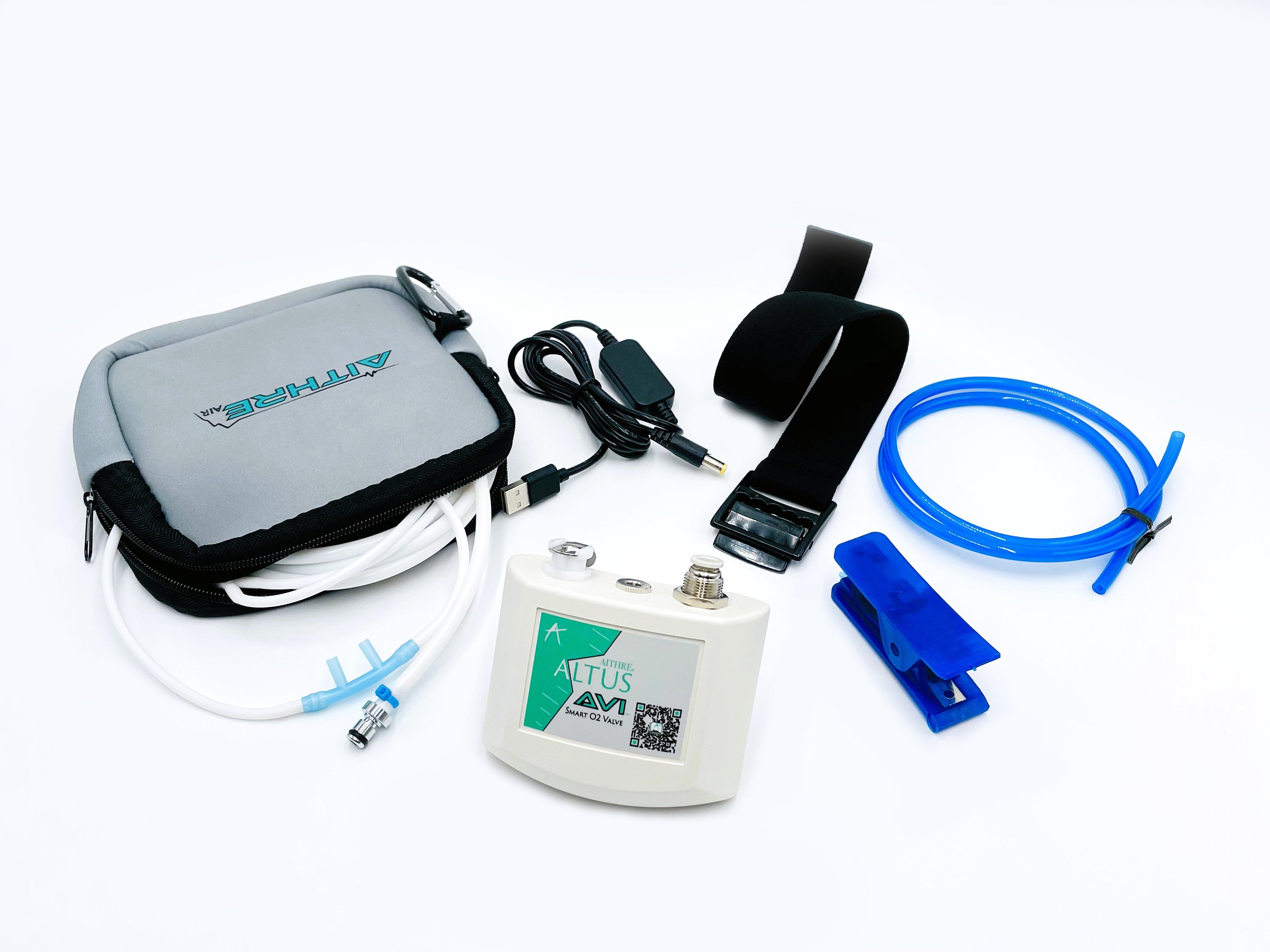

PRICE INCLUDES

AVI 1-Place Oxygen Control Unit
Choice of Main Bottle with Regulator or Inline Flow Regulator for Use with Existing Installed System
Aithre Silicone Cannula (x1)
Aithre Altus Meso Wireless Pressure Gauge
USB-A 5V to 12V Up-convert Power Cable
iOS Aithre Connect App

AVI SPECIFICATIONS

50-65 PSI Rating
12-30V
0.25 A Max Current
3.8" x 3" x 2" Overall
9 ounces

AITHRE BOTTLE SPECIFICATIONS

Composite carbon fiber & aluminum construction
2000 PSI working pressure
3000 PSI maximum rating
15 year bottle service life (retesting every 5 years)
Published Endurance Data and Bottle Specifications

REGULATION NOTICES

CE Certificate: Aithre Bottle certified CE 1282 and inspected/tested to ISO 11119-3 international standards
NOT DOT approved: Carrier shipment in the U.S. requires the bottle to be empty with no pressure and no compressed oxygen
Personal portable use only - not approved for commercial use
Not FDA approved for medical: Do not use to treat or prevent a disease or for any medical purpose.

WARNINGS AND LIMITATIONS

The AVI is not authorized for operations above 15,000 MSL except as provided in the Aithre High Altitude Addendum.
Flight above 15,000 MSL in unpressurized aircraft can be extremely dangerous. Risks include: Hypoxia, loss of consciousness, altitude sickness, and death.
Safe use of the AVI system requires compliance with the Aithre HealthView instructions, the Aithre High Altitude Addendum, and the checklists provided therein.
Use the Aithre AVI only with Aithre-approved portable oxygen bottles and regulators to ensure correct operation and to prevent damage to the system.

Review additional supporting material here.
