Aithre Shield EX 3.0-S with ATD-57 Biometric Avionics

Available for pre-order and shipping September 2025 is the Shield EX 3.0-S with the Air Avionics ATD-57.

The Shield EX 3.0-S with ATD-57 is a lite version of the HealthView II and provides primary health information in a dedicated biometric avionics display.  The primary health information includes gauges for blood oxygen levels, heart rate, cabin temperature, carbon monoxide levels, and oxygen tank pressure to help you monitor the parameters that are most important to your mission.

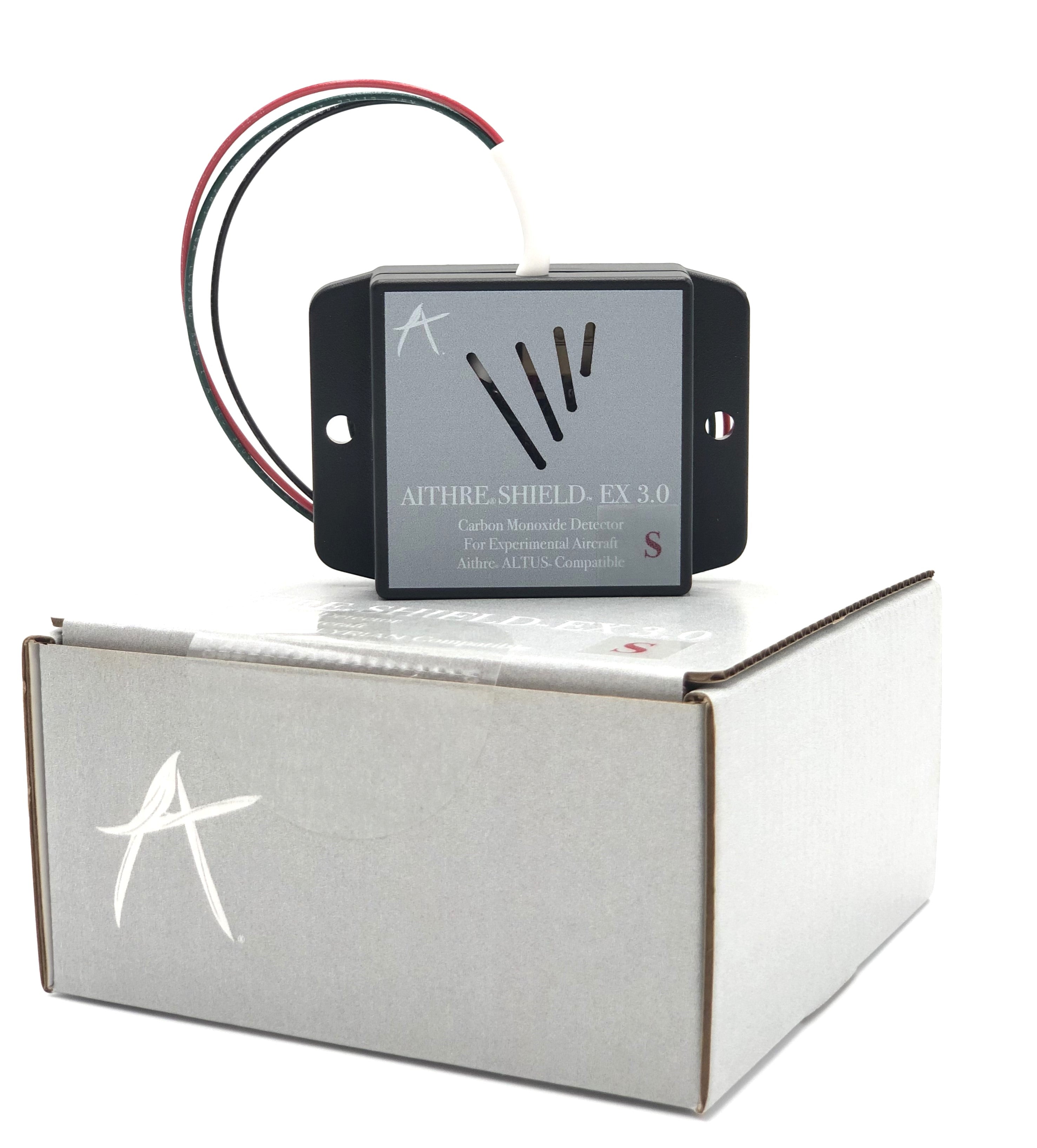

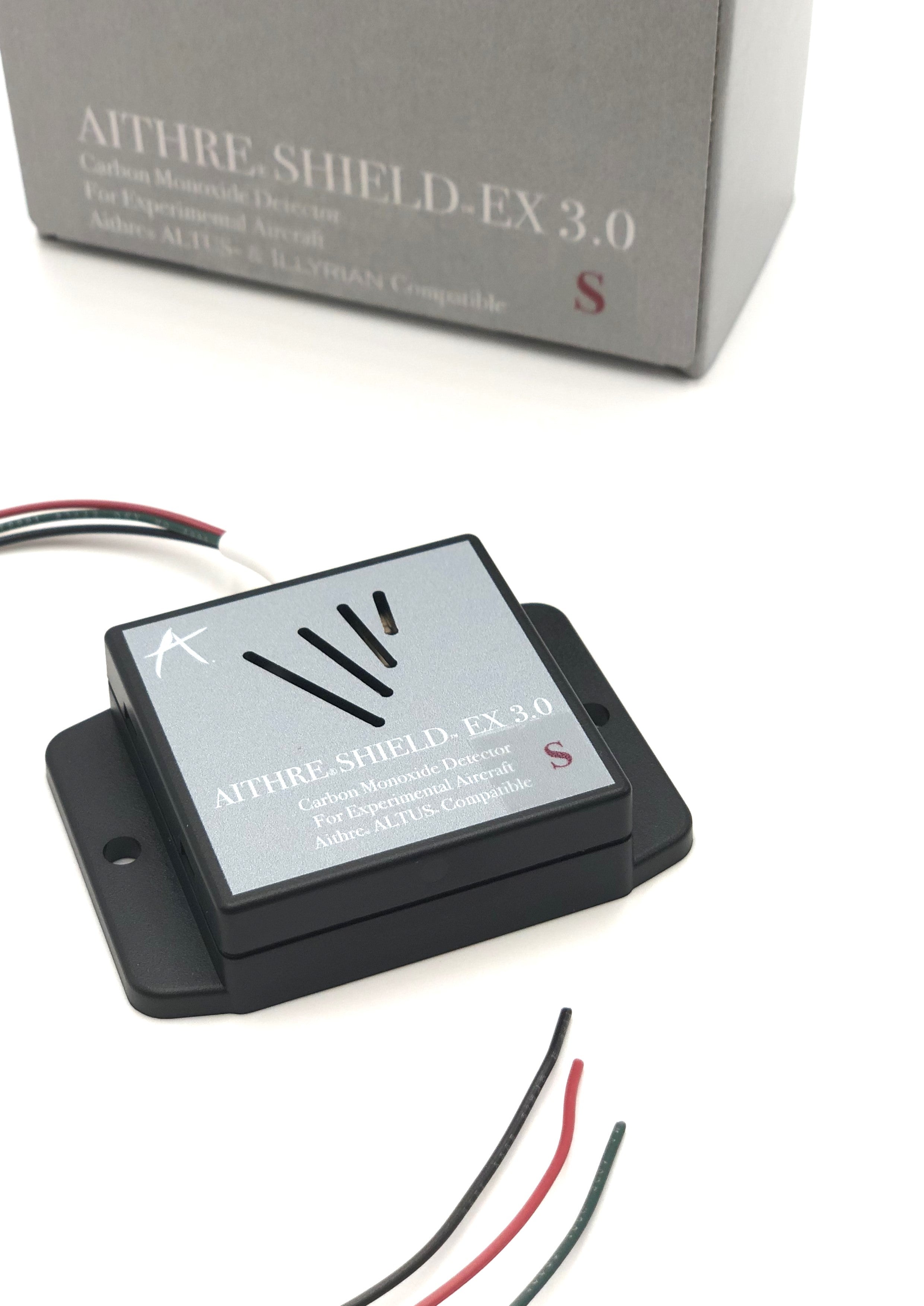

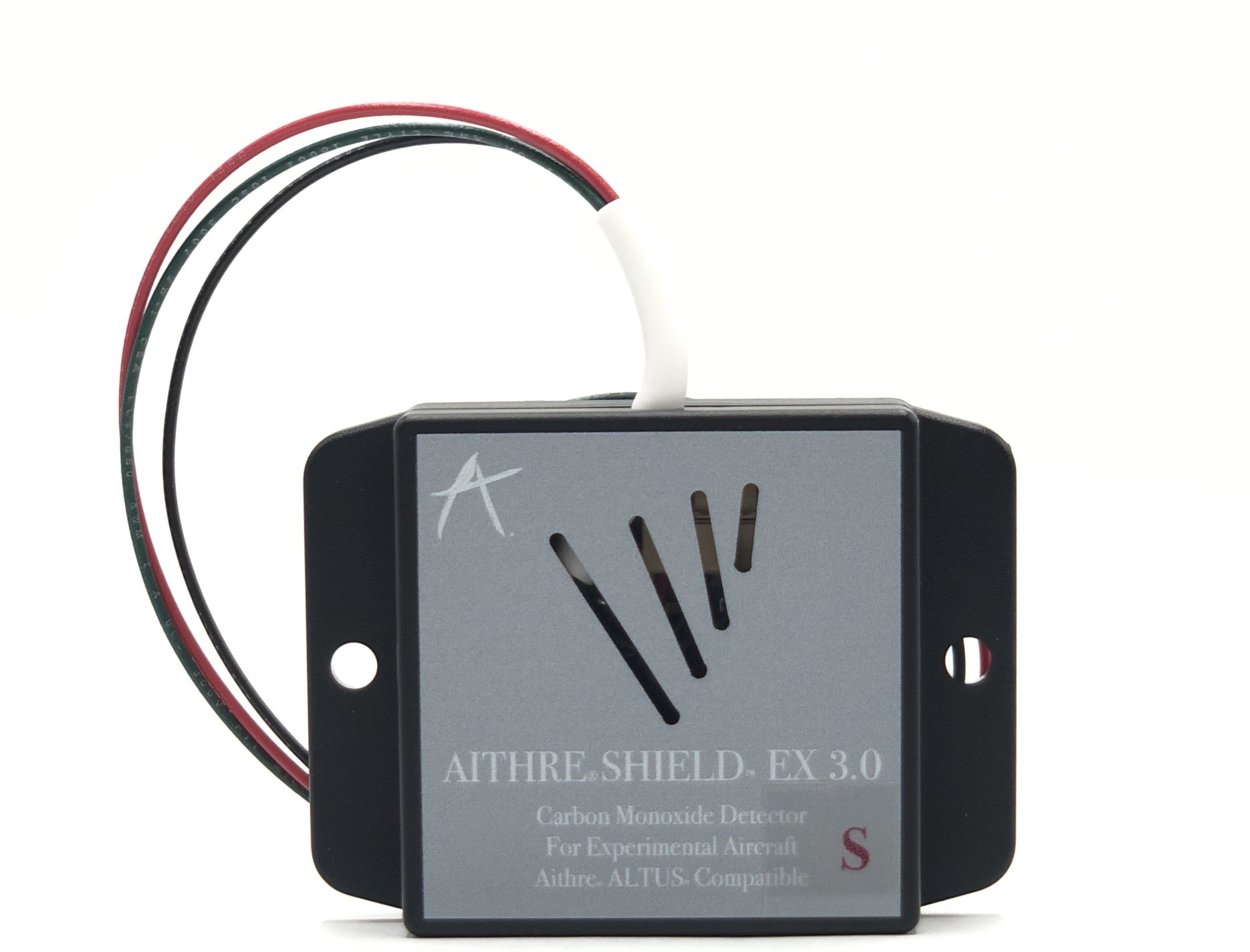

The Shield EX 3.0-S with ATD-57 includes the Shield EX 3.0-S carbon monoxide detector and Air Avionics ATD-57 display.  The Shield EX 3.0-S acts as a data bridge with the Air Avionics ATD-57 display unit to provide a BLE data link between Aithre devices.  The ATD-57 is panel mounted in a standard 2.25" cutout.  The Shield EX 3.0-S is remote mounted behind paneling.

The Shield EX 3.0-S is a native carbon monoxide detector and obtains the cabin temperature and carbon monoxide readings locally.  The EX 3.0-S then further obtains SPO2, heart rate, and oxygen tank pressure wirelessly via BLE from a Meso device and an Illyrian product.  The EX 3.0-S then communicates the consolidated parameters to the ATD-57 for display via a single RS-232 serial data connection.

INCLUDED

• Aithre Shield EX 3.0-S
• Air Avionics ATD-57
• Air Avionics Shield License

NOT INCLUDED SOLD SEPARATELY

• Aithre Illyrian
• Aithre Portable Meso

FEATURES

• Voltage: 12-30V
• Total Current @ 12V: 20 mA (0.02 A)
• Shield EX 3.0-S Size: 71mm" x 51mm" x 18mm"
• ATD-57 Size: 62mm x 62mm x 27mm
• Combined Weight:  170 grams or 6 ounces

• ATD-57 viewing angle: 45°
